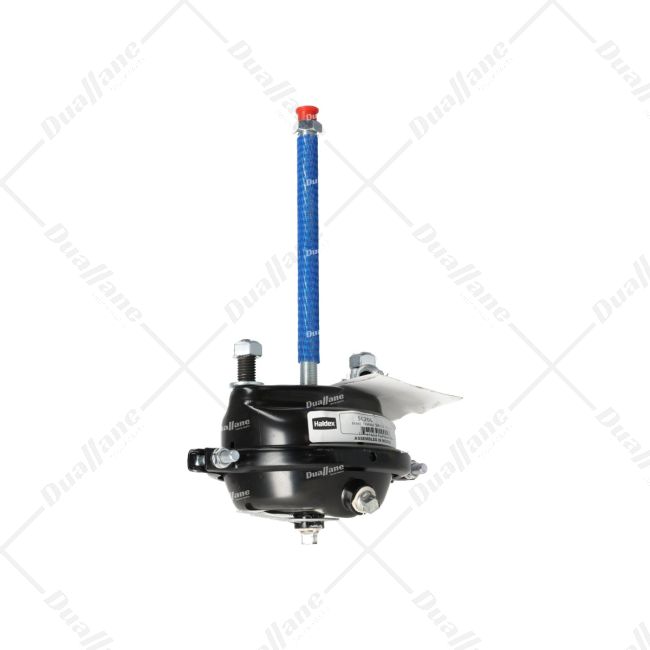

Haldex Brake Chamber Assembly T20, 2.50, 10.00 | SC20L
SKU
HDX SC20L
MPN
SC20L
$56.80
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The HDX SC20L is a chamber assembly designed for the T20 model featuring a 2.50 inch stroke and 10.00 inch push rod length. It is an essential component in the vehicle's braking system, converting air pressure into mechanical force to activate the brakes effectively. Regular inspection and proper maintenance of the chamber assembly are crucial to ensure optimal braking performance and safety on the road. When dealing with brake components, always adhere to the manufacturer's guidelines and follow safety procedures to ensure proper installation and operation.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Air Port Position: 90 deg
- Service Clamp band Position: 0 deg
- Chamber Type: 20
- Stroke Length: 2.50 in
- Push Rod Length: 10 in
- Inlet Port Thread Size: 3/8-18 NPTF in
- Stud Distance: 120.7 mm
- Dimension At Service Clamp band: 8.6 in
- Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
- Length From Mounting Bracket To Spring Housing End: 4.20 in
- Push Rod Length From Face Of Service Housing: 10 in
- Inlet Position Angle: 90 deg
- Air Port Thread Size: 3/8-18 NPTF in
- Maximum Pressure: 150 psi
| FREIGHTLINER | ABPN42A20SCND | |
|---|---|---|
| MGM BRAKES | 1421001, 1621001 | |
| POWER PRODUCTS | SC2000LS | |
| OTHER | 90004550, HDXSC20L, SC20-L, XSC20L, SC20L, ABPN42A20SCND, PLBSC20LS |
| Manufacturer | Haldex |
|---|---|
| Shipping Length (in) | 18.00 |
| Shipping Width (in) | 18.00 |
| Shipping Height (in) | 12.00 |
| Returnable | Yes |
| Weight (lb) | 8.40 |
| Core Exchange | No |
