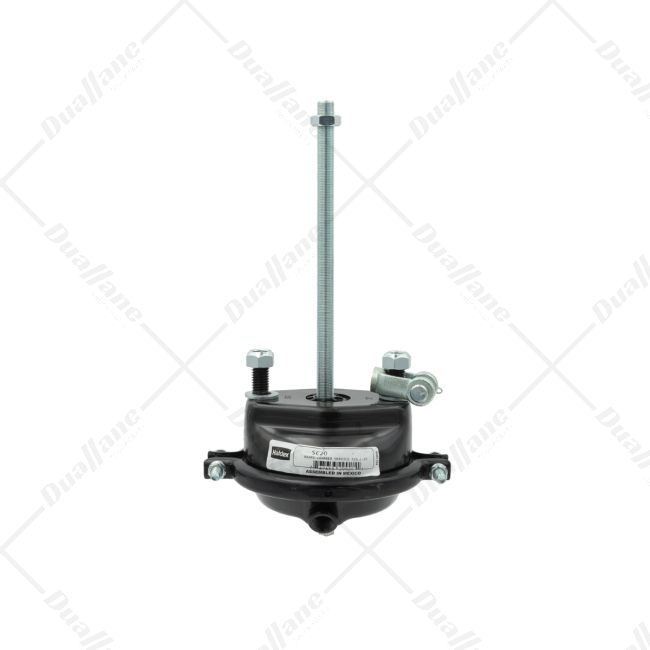

Haldex SC20 - Service Chamber Brake | SC20

Description

The HDX SC20 serves as a chamber assembly, meticulously fashioned for the T20 model, boasting a 2.25-inch stroke and a 10.15-inch pushrod length. Its significance within the braking system is undeniable as it proficiently transmutes air pressure into mechanical force, instigating efficient brake engagement. To sustain trustworthy braking performance and road safety, diligent maintenance and comprehensive inspection of this chamber assembly are paramount.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Width: 102 mm
• Outer Diameter: 178 mm
• Stroke Length: 2.25 in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Service Clamp band: 8.6 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 4 in
• Push Rod Length From Face Of Service Housing: 10.2 in
• Inlet Position Angle: 90 deg
• Air Port Thread Size: 3/8-18 NPTF in
• Maximum Pressure: 150 psi
