Haldex Chamber Assembly Spring And Service Brake | GC3036LCW

Description

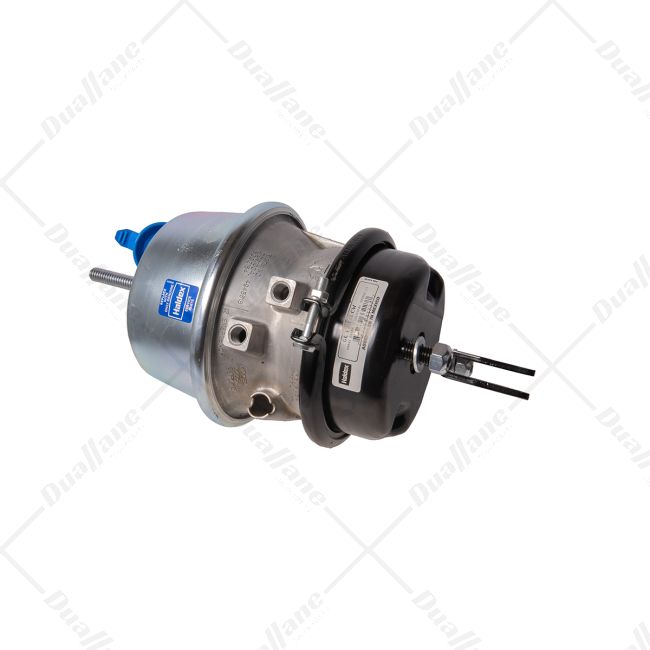

The HDX GC3036LCW is a vital brake chamber assembly tailored to serve dual roles as both a Spring Brake and a Service Brake within heavy-duty vehicles. Operating within the air brake system, it adeptly transforms compressed air pressure into the mechanical force requisite for efficient brake engagement. The LCW signifies specific features or configurations associated with the chamber assembly which can be gleaned from the manufacturer's documentation or technical specifications. To ensure optimal performance and safety, accurate selection of the fitting chamber assembly for the designated vehicle and application remains paramount.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Maximum Pressure: 150 psi
• Maximum Air Pressure: 150 psi
• Finish: Powder Coated
• Housing Material: Steel
• Clevis Type: Welded
• Quantity: 1
• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Stud Length: 1.50 in
• Stroke Length: 3 in
• Port Thread Size: 3/8-18 NPTF in
• Stud Thread Size: 5/8-11 UNC in
• Stud Distance: 120.7 mm
• Dimension At Rolled Spring Housing Flange: 9.10 in
• Dimension At Service Clamp band: 10.2 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 10.60 in
• Piggyback Length: 8 in
• Push Rod Length From Face Of Service Housing: 1 in
• Push Rod Thread Size: 5/8-18 UNF in
• Air Port Thread Size: 3/8-18 NPTF in
