Haldex Welded Yoke Brake Type 24 Chamber | SC24XLCW

Description

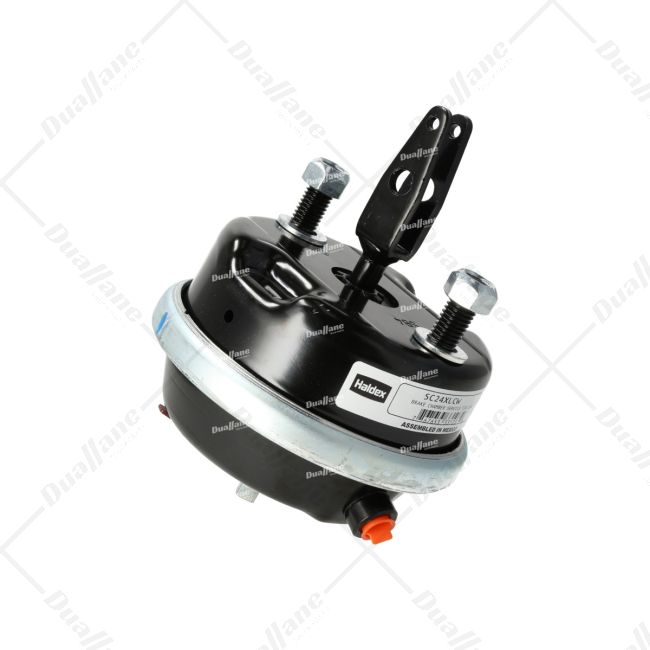

The HDX SC24XLCW is a Haldex Welded Yoke designed for brake type 24 chambers. It is an extra-long type with a stroke length of 3 inches. This component is equipped with various specifications, including an air port position at 0 degrees, a maximum pressure rating of 150 psi, a width of 191 mm and an inlet port thread size of 3/8-18 NPTF inches. The stud distance is 120.7 mm and the dimension at the service clamp band measures 7.5 inches. Additionally, the distance to the clevis pin centerline from the face of the service housing is 4.75 inches; the length from the mounting bracket to the spring housing end is 4.30 inches; and the push rod length from the face of the service housing is 1 inch. The inlet position angle is 0 degrees, and the air port thread size is 3/8-18 NPTF inches. This yoke is used in air brake systems for commercial vehicles, where precise specifications are crucial for safe and reliable braking performance.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Type: Extra Long
• Quantity: 1
• Air Port Position: 0 deg
• Maximum Pressure: 150 psi
• Width: 191 mm
• Stroke Length: 3 in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Service Clamp band: 7.5 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 4.30 in
• Push Rod Length From Face Of Service Housing: 1 in
• Inlet Position Angle: 0 deg
• Air Port Thread Size: 3/8-18 NPTF in
