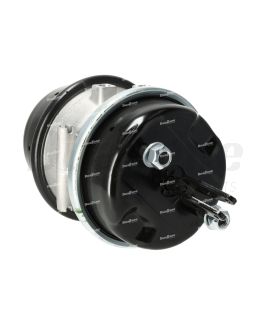

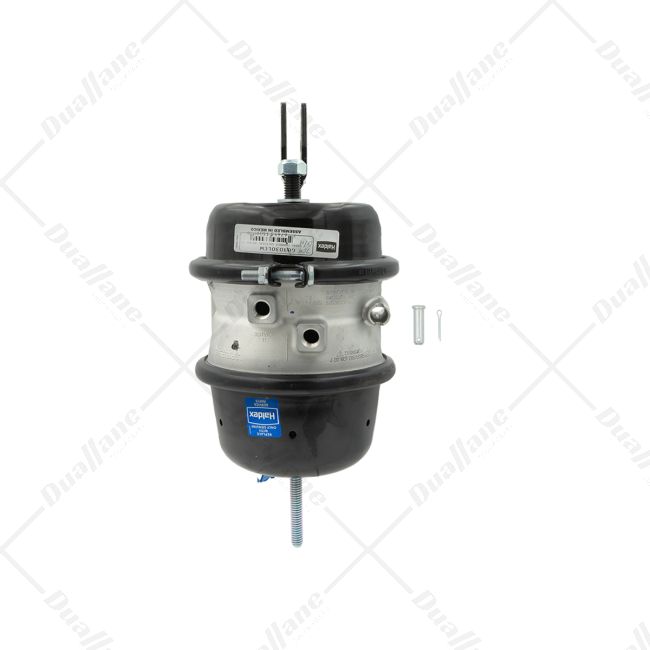

Haldex Brake Chamber | GC3030LCW

Description

The HDX GC3030LCW brake chamber is an integral part of air brake systems within heavy-duty commercial vehicles. Engineered to transform compressed air pressure into mechanical energy, it drives the vehicle's braking action. Featuring a diaphragm that responds to air pressure, it propels the pushrod to engage the brakes. The GC3030LCW variant stands out with its welded yoke construction, guaranteeing a robust and enduring linkage for consistent and trustworthy braking effectiveness. As a crucial element of the vehicle's braking mechanism, it plays a vital role in ensuring secure and efficient braking performance, particularly suited for heavy-duty applications.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Maximum Pressure: 150 psi
• Finish: Powder Coated
• Housing Material: Steel
• Chamber Type: 3030
• Quantity: 1
• Grade: 5
• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Stud Length: 1.50 in
• Stroke Length: 3 in
• Push Rod Length: 1 in
• Stud Thread Size: 5/8-11 UNC in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Rolled Spring Housing Flange: 8.30 in
• Dimension At Service Clamp band:10.2 in
• Distance To Clevis Pin Centerline From Face Of Service Housing:
• 4.75 in
• Length From Mounting Bracket To Spring Housing End: 9.90 in
• Piggyback Length: 7.40 in
• Push Rod Length From Face Of Service Housing: 1 in
• Push Rod Thread Size: 5/8-18 UNF in
• Inlet Position Angle: 90 deg
• Air Port Thread Size: 3/8-18 NPTF in
