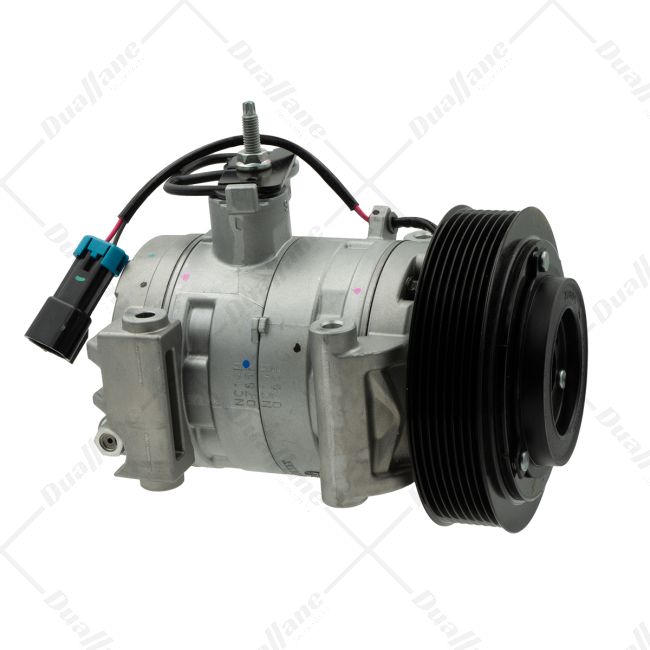

Freightliner A/C Compressor, 140 MM, 8PK | 22-75835-000

Description

The 22-75835-000 is an air conditioner compressor that comes with a setup of 140 mm and 8 grooves (8PK). This compressor plays a role in the vehicle's air conditioning system by compressing and circulating the refrigerant to cool down the air inside the cabin. The measurement of 140 mm refers to the diameter of the pulley used for driving the compressor. The designation of 8PK indicates that the pulley has 8 grooves, which allows it to accommodate an 8-ribbed belt. This particular model of the compressor is suitable for vehicle models and plays a significant role in ensuring a comfortable and cool interior environment during warm weather.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Clutch Pulley Diameter: 140 mm
• Length: 203 mm
• Stroke Length: 21.40 mm
• Bore Diameter: 30.50 mm
• Oil Capacity: 130 cu.cm
• Clutch Diameter: 144 mm
• Maximum Rpm: 8000 RPM
• Belt Type: Poly-V
• Refrigerant Type: R134a
• Voltage: 12 V
• Power Consumption: 48 W
• Groove Quantity: 8
• Cylinder Quantity: 10
• Displacement: 9.56 cc/rev
• Rotation Direction: Clockwise
