Freightliner A/C Hose Assembly | A22-41330-002

Description

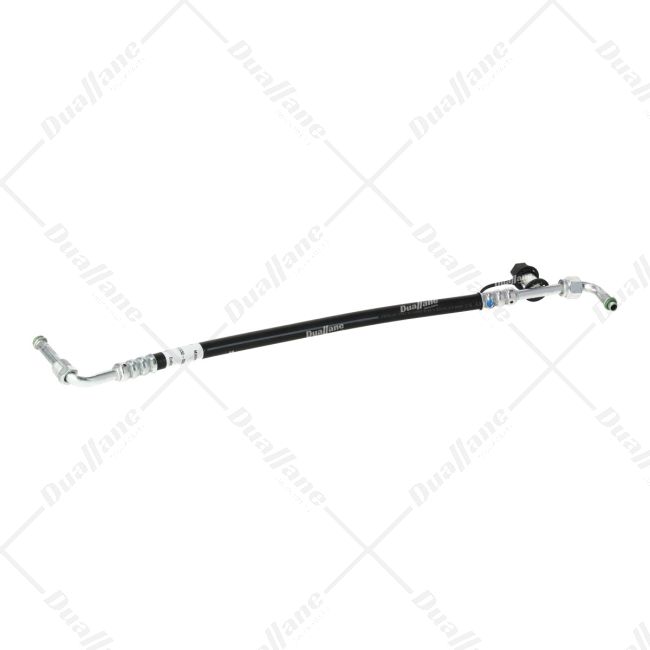

The A22-41330-002 is a 20.50-inch long air conditioning hose assembly. It has #6 fittings on both ends, which are angled at 90 degrees. The construction of this assembly includes a hose made from synthetic rubber with steel fittings and a tube made from elastomer material. The outer diameter of the hose is 0.62 inches, while the inner diameter is 0.32 inches and it has a wall thickness of 0.15 inches. The first end fitting is angled at 90 degrees, while the second end fitting also has a 90 degree angle and uses a thread size of 5/8 18. This assembly is designed to withstand burst pressures up to 1000 psi.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 1 Fitting Type: Beaded Female Swivel Nut
• End 2 Fitting Type: Beaded with Male Swivel Nut
• Hose Material: Synthetic Rubber
• Fitting Material: Steel
• Tube Material: Steel
• Cover Material: Elastomer
• Hose Inner Diameter: 0.32 in
• Hose Length: 16 in
• Hose Outer Diameter: 0.62 in
• Center To Center Length: 20.50 in
• Hose Wall Thickness: 0.15 in
• End 1 Fitting Angle: 90 deg
• End 2 Fitting Angle: 90 deg
• Tube 1 Wall Thickness: 0.04 in
• Tube 1 Outer Diameter: 0.38 in
• Tube 1 Inner Diameter: 0.30 in
• End 1 Fitting Thread Size: 5/8-18 UNF 2B in
• End 2 Fitting Thread Size: 5/8-18 in
• Standard End 1 Fitting Size: #6
• Standard Hose Size: #6
• Burst Pressure: 1000 psi
