Freightliner A/C Hose Assembly | A22-32945-104

Description

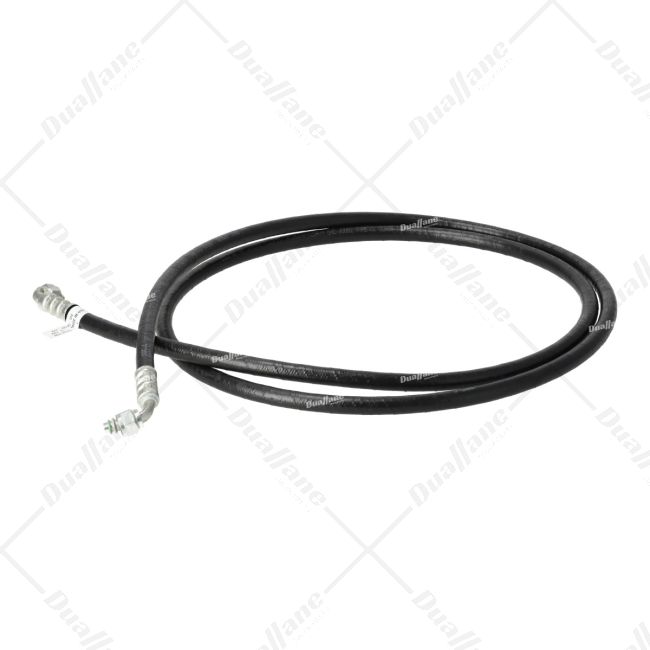

The A22-32945-104 is a hose assembly specifically designed for air conditioning systems. It connects the condenser to the receiver/dryer. This particular assembly measures 104 inches in length and has a standard #6 hose size. The hose itself is made of nylon, while the fittings are constructed from steel. On both ends, you'll find beaded female swivel nut fittings with 90 degree angles. The inner diameter of the hose is 0.32 inches, while the outer diameter measures 0.62 inches and it has a wall thickness of 0.15 inches. As for the tube material, it's made of steel with an outer diameter of 0.38 inches and a wall thickness of 0.04 inches. Rest assured that this hose assembly can withstand burst pressures up to 1000 psi, guaranteeing its reliability and durability within air conditioning systems.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Fitting Type: Beaded Female Swivel Nut
• End 1 Fitting Type: Beaded Female Swivel Nut
• End 2 Fitting Type: Beaded with Female Swivel Nut
• Hose Material: Nylon
• Fitting Material: Steel
• Tube Material: Steel
• Cover Material: Elastomer
• Hose Inner Diameter: 0.32 in
• Hose Length: 101.88 in
• Hose Outer Diameter: 0.62 in
• Tube Outer Diameter: 0.38 in
• Tube Wall Thickness: 0.04 in
• Center To Center Length: 104 in
• Hose Wall Thickness: 0.15 in
• Tube Inner Diameter: 0.30 in
• End 1 Fitting Angle: 90 deg
• End 2 Fitting Angle: 90 deg
• Fitting Angle: 90 deg
• Tube 1 Wall Thickness: 0.04 in
• Tube 2 Inner Diameter: 0.30 in
• Tube 1 Outer Diameter: 0.38 in
• Tube 2 Wall Thickness: 0.04 in
• Tube 2 Outer Diameter: 0.38 in
• Tube 1 Inner Diameter: 0.30 in
• Fitting Thread Size: 5/8-18 UNF 2B in
• End 1 Fitting Thread Size: 5/8-18 UNF 2B in
• End 2 Fitting Thread Size: 5/8-18 UNF 2B in
• Standard Fitting Size: #6
• Standard End 2 Fitting Size: #6
• Standard End 1 Fitting Size: #6
• Standard Hose Size: #6
• Burst Pressure: 1000 psi
