Freightliner A/C Hose Assembly | A22-38763-000

Description

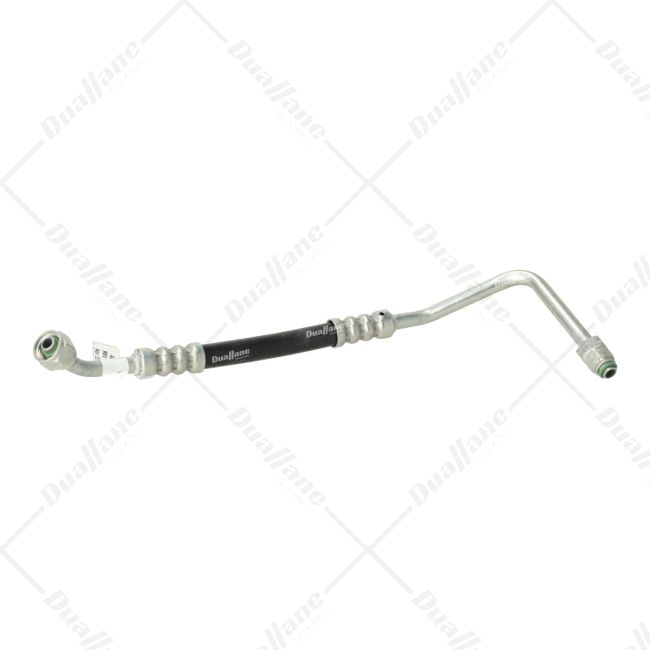

The A22-38763-000 is a liquid air conditioning hose specially designed for HVAC systems. It comes with O-ring Male Swivel Nut fittings on both ends, featuring a shorter pilot on one end and a longer pilot on the other, all made of durable steel. The hose has an internal diameter of 0.31 inches and an outer diameter of 0.61 inches, with a length measuring 6.25 inches. Its hose wall thickness measures 0.15 inches and the distance between centers is approximately 11.68 inches. This particular hose is compatible with standard #6 hose size and boasts a burst pressure rating of 1000 psi.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 1 Fitting Type: O-ring, Male Swivel Nut, Short Pilot
• End 2 Fitting Type: O-ring, Male Swivel Nut, Long Pilot
• Fitting Material: Steel
• Hose Inner Diameter: 0.31 in
• Hose Length: 6.25 in
• Hose Outer Diameter: 0.61 in
• Center To Center Length: 11.68 in
• Hose Wall Thickness: 0.15 in
• End 1 Fitting Thread Size: 5/8-18 UNF 2A in
• End 2 Fitting Thread Size: 5/8-18 UNF 2B in
• Standard Hose Size: #6
• Burst Pressure: 1000 psi
