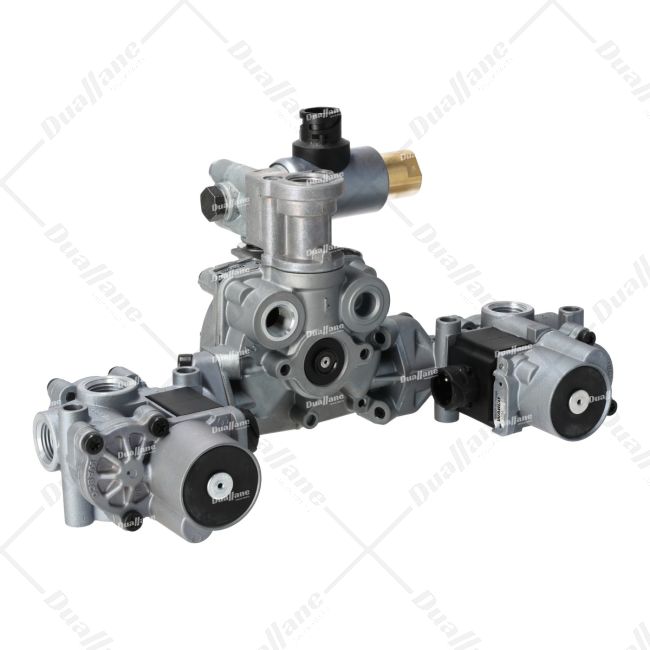

Meritor Wabco ATC/Relay Combo Valve | 472 500 225 0
SKU
WAB 472 500 225 0
MPN
472 500 225 0
$715.88
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The WAB 472 500 225 0 is an ATC/Relay Combo Valve designed for 4S/4M + (1M) and 6S/4M system types. It operates at a maximum pressure of 159.50 psi and has a response pressure of 0.38 bar. The valve features various port thread sizes including 1/2-14 NPTF, 3/8-18 NPTF and 1/4-18 NPTF, making it versatile for different connections. With a wide working temperature range from -40 to +80 degrees Celsius, it is suitable for various environmental conditions. The electrical voltage requirement is 12 V and it has a volume of 9.47 L. The connection type is a bayonet coupling for easy installation and maintenance.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Voltage: 12 V
- Volume: 9.47 L
- Inlet Port Thread Size: 1/2-14 NPTF in
- Outlet Port Thread Size: 3/8-18 NPTF in
- Delivery Port Thread Size: 1/2-14 NPTF in
- Control Port Thread Size: 1/4-18 NPTF in
- Port 1 Thread Size: 1/2-14 NPTF in
- Port 2 Thread Size: 3/8-18 NPTF in
- Port 4 Thread Size: 1/4-18 NPTF in
- System Type: 4S/4M + (1M) 6S/4M
- Connection Type: Bayonet Coupling
- Maximum Operating Pressure: 159.50 psi
- Response Pressure: 0.38 bar
- Working Temperature Range: -40 to +80 Deg.C
| WABCO | 4725002250 | |
|---|---|---|
| BEPCO | 4725002250X | |
| HALDEX | 4725002250X |
| Manufacturer | Meritor Wabco |
|---|---|
| Shipping Length (in) | 18.00 |
| Shipping Width (in) | 18.00 |
| Shipping Height (in) | 12.00 |
| Returnable | Yes |
| Weight (lb) | 7.69 |
| Core Exchange | No |
