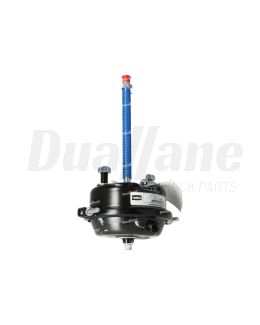

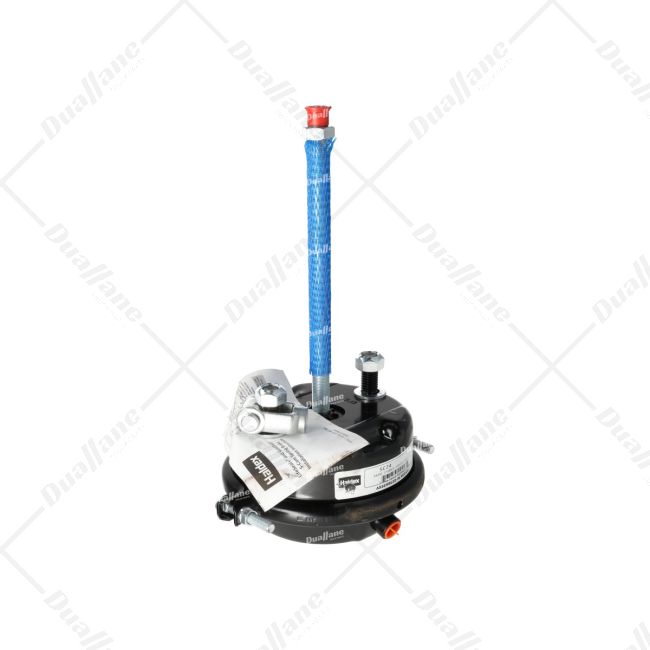

Haldex Brake Chamber Assembly T24, 2.25 STR, 10.23 J, J | SC24

Description

The HDX SC24 serves as a crucial component in a vehicle's braking system. It is specifically designed to convert air pressure into mechanical force, allowing the brakes to engage effectively. With a stroke length of 2.25 inches and a diaphragm centerline dimension of 10.23 inches, the SC24 chamber assembly plays an important role in ensuring reliable brake performance and safe driving. To guarantee proper installation and operation, it is essential to adhere to the manufacturer's guidelines and safety procedures when working with brake components. Regular maintenance and inspection of the SC24 chamber assembly are highly recommended for optimal brake functionality.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Width: 109 mm
• Outer Diameter: 191 mm
• Stroke Length: 2.25 in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Service Clamp band: 9.4 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 3.80 in
• Push Rod Length From Face Of Service Housing: 10.2 in
• Inlet Position Angle: 90 deg
• Air Port Thread Size: 3/8-18 NPTF in
• Maximum Pressure: 150 psi
