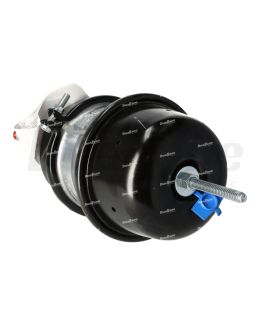

Haldex Spring Brake Assembly | GC2430L

Description

The HDX GC2430L represents a Spring Brake Assembly manufactured by Haldex. These assemblies play a crucial role in a vehicle's air brake system, serving as parking brakes, emergency brakes and allowing for the safe release of service brakes when required. It is vital to properly maintain and replace spring brake assemblies to ensure the vehicle's braking system operates safely and efficiently. Haldex is renowned for their production of air brake and suspension systems, supplying components for commercial and heavy-duty vehicles.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Finish: Powder Coated
• Housing Material: Steel
• Chamber Type: 2430
• Stroke Length: 2.50 in
• Push Rod Length: 10 in
• Stud Distance: 120.7 mm
• Dimension At Rolled Spring Housing Flange: 8.30 in
• Dimension At Service Clamp band: 9.4 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 9.30 in
• Piggyback Length: 6.80 in
• Push Rod Length From Face Of Service Housing: 10 in
• Inlet Position Angle: 90 deg
• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
