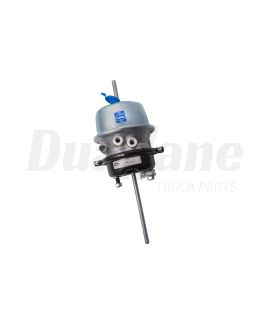

Brake Chamber 3036 Combination | GC3036L

Description

The HDX GC3036L brake chamber is a vital part of a vehicle's air brake system. Its role is to convert air pressure into mechanical force, allowing the brakes to engage. Ensuring proper maintenance and timely replacement of these brake chambers is essential for maintaining the safe and efficient operation of the vehicle's braking system. Haldex, a reputable manufacturer, specializes in producing air brake and suspension components for commercial and heavy-duty vehicles.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Finish: Powder Coated
• Housing Material: Steel
• Chamber Type: 3036
• Maximum Pressure: 150 psi
• Stud Length: 1.50 in
• Stroke Length: 3 in
• Push Rod Length: 10 in
• Stud Thread Size: 5/8-11 UNC in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Rolled Spring Housing Flange: 9.10 in
• Dimension At Service Clamp band: 10.2 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 10.60 in
• Piggyback Length: 8 in
• Push Rod Length From Face Of Service Housing: 10 in
• Push Rod Thread Size: 5/8-18 UNF in
• Inlet Position Angle: 90 deg
• Air Port Thread Size: 3/8-18 NPTF in
• Grade: 5
• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
