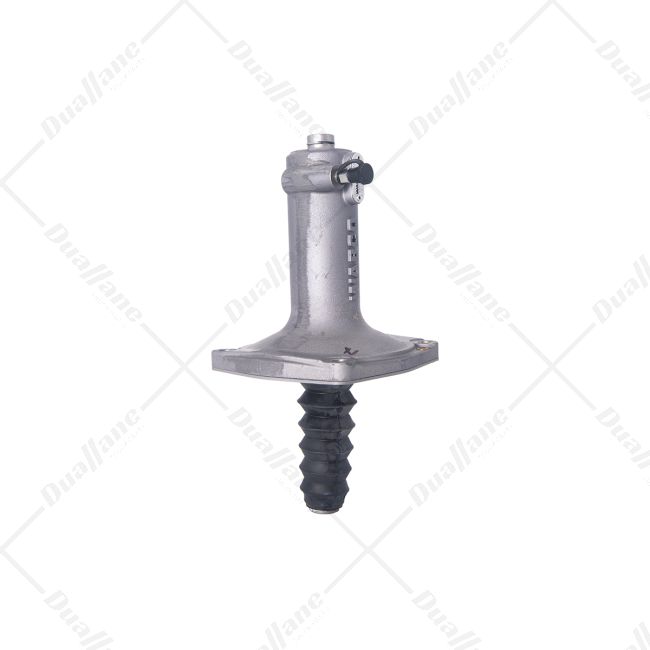

Wabco Slave Cylinder | 970 051 503 0
Have a Question for Our Team?
Description
The 970 051 503 0 is a slave cylinder engineered for clutch control, an indispensable constituent of hydraulic clutch systems. Tasked with the pivotal role of actuating the clutch mechanism, the slave cylinder receives hydraulic pressure from the master cylinder and astutely transmutes it into mechanical force, orchestrating the seamless engagement and disengagement of the clutch. This cylinder incorporates a cylinder body, a piston and seals, all harmonizing to ensure hydraulic sealing. Working with precision clutch control components, the slave cylinder contributes to a harmonious and dependable clutch operation, enriching various applications with its efficiency and efficacy.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Maximum Operating Pressure: 1450.40 psi
- Weight: 0.95 kg
- Length: 210 mm
- Stroke Length: 2.10 in
- Mounting Hole Diameter: 0.36 in
- Volume: 3.74 L
- Port Thread Size: M7X1 mm
- Mount Hole Center to Center Length: 5.12 in
- Port 32 Thread Size: M7 x 1 mm
- Mounting Hole Quantity: 4
- Oil Type: Brake Fluid SAE J 1703
- Working Temperature Range: -40 to +185 Deg. F
| FREIGHTLINER/DAIMLER TRK | TDA S9700515030, WAB9700515030, 02-13133-000 | |
|---|---|---|
| I H C TRUCK | WAB9700515030, EE23002062, S9700515030, ZDRS9700515030 | |
| MERITOR AUTOMOT./ROCKWELL | S9700515030 | |
| OTHER | TDA S9700515030, WAB9700515030, EE23002062, S9700515030, ZDRS9700515030 | |
| SUPERSEDED | EE23002062, S9700515030, ZDRS9700515030, 02-13133-000 |
| Manufacturer | Meritor Wabco |
|---|---|
| Shipping Length (in) | 16.00 |
| Shipping Width (in) | 16.00 |
| Shipping Height (in) | 10.00 |
| Returnable | Yes |
| Weight (lb) | 2.67 |
| Core Exchange | No |
