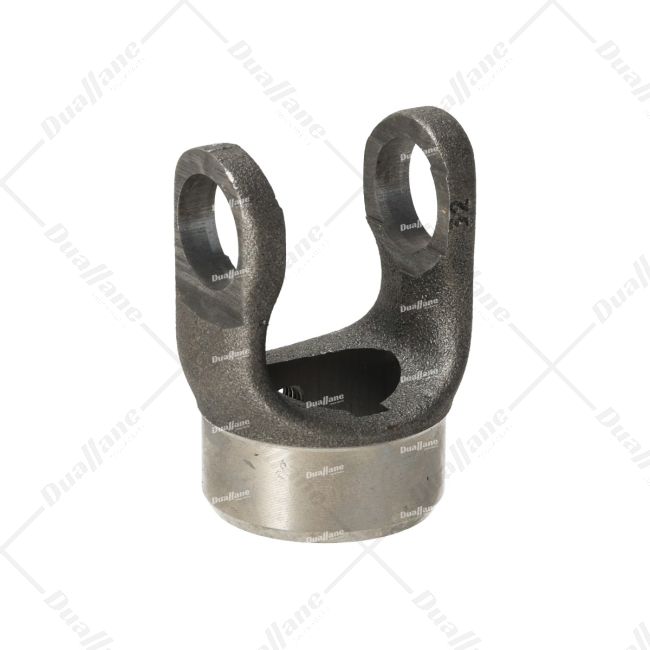

Spicer Power Take Off (PTO) End Yoke | 10 4 123

Description

The SP 10 4 123 Spicer End Yoke is a sturdy and precise component used in drivetrain systems. Its main function is to connect and transfer torque between two shafts, ensuring smooth power transmission. The yoke features a straight round hole design with specific dimensions including bore diameter, hole diameter and yoke bearing diameter, ensuring a proper fit with corresponding parts. Its construction from durable steel provides reliability and strength to withstand the demands of vehicle operation. The yoke's joint angle of 60 degrees allows for flexibility and efficient power transfer in various driving conditions.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Bore Diameter: 1.25 in
• Hole Diameter: 1.25 in
• Set Screw Hole Diameter: 0.38 in
• Yoke Bearing Diameter: 0.94 in
• Hole Length: 1.03 in
• Keyway Width: 0.31 in
• Yoke Dimension Across Ears: 1.50 in
• Hub Outer Diameter: 2 in
• Hub Diameter: 2 in
• Bearing Center to Hub End Length: 2.50 in
• Joint Angle 1: 60 deg
• Material: Steel
• Type: Straight Round Hole
• Involute Spline: No
• Series: 1000
• Keyway Location: 3
• Set Screw Location: 9
• Yoke Style: ISR
