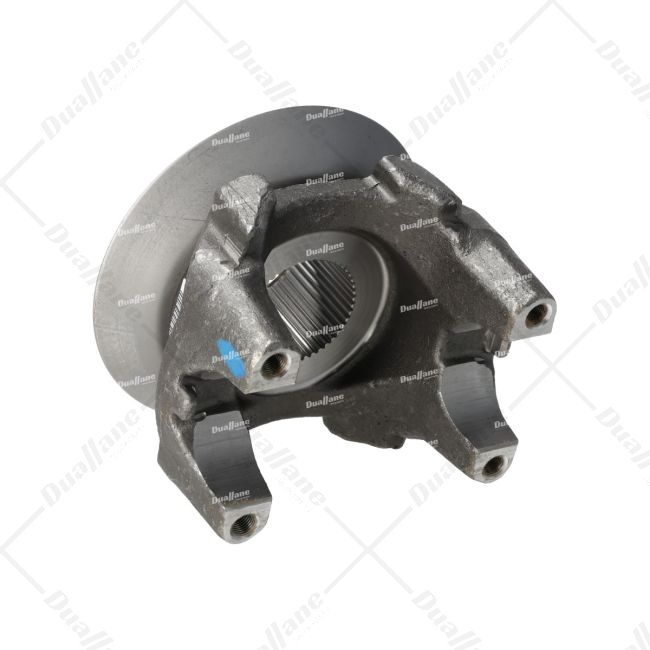

Spicer Half Round Differential End Yoke | 250 4 351 1X

Description

The SP 250 4 351 1X serves as a crucial component for the rear axle of the SL250. It acts as a connector, linking the drive shaft to the axle to enable the efficient transfer of torque from the engine to the wheels. Its purpose is to establish a dependable and secure connection, ensuring smooth operation of the drivetrain system and effective power transmission. This yoke is specifically designed to be compatible with and properly fit the SL250's rear axle configuration.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Style: HR
• Spline Quantity: 46
• Series: SPL250
• Slinger/Plug included: Yes
• Yoke Style: HR
• Center To End Length: 5.31 in
• Major Diameter: 2.39 in
• Spline Diameter: 2.39 in
• Maximum Hub Diameter: 3.25 in
• Outside Yoke Diameter: 6.42 in
• Yoke Bearing Diameter: 2.36 in
• Hole Length: 2.31 in
• Counter Bore Depth: 0.14 in
• Outer Yoke Length: 6.42 in
• Hub Diameter: 3.25 in
• Bearing Center to Hub End Length: 5.31 in
• Material: Steel
• Type: Splined Hole
• Involute Spline: Yes
