Phillips Sealed Beam | H6024C1
Have a Question for Our Team?
Description

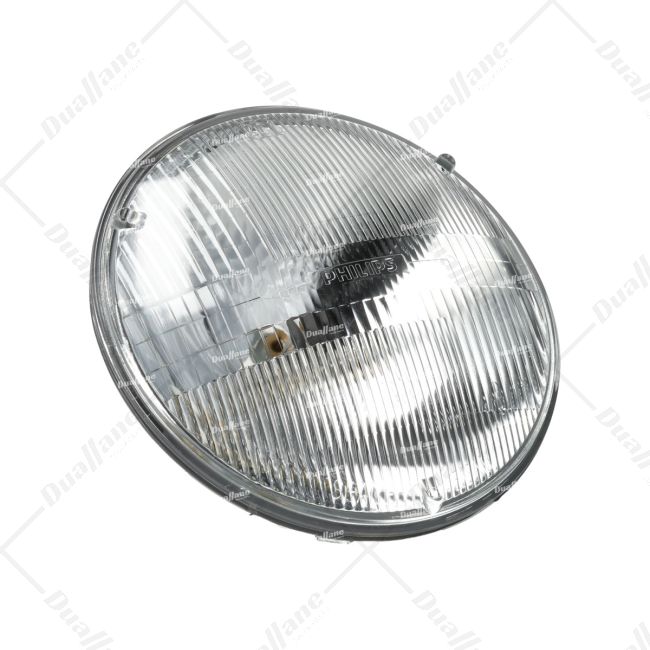

The PLC H6024C1 is a halogen sealed beam that can be used for both high-beam and low-beam lighting. It operates at a voltage of 12.8 V and draws 5.08 A of current for the high-beam filament, while the low-beam filament requires 2.73 A, resulting in a total current of 5.08 A when both filaments are active. This bulb follows the standard sealed beam design and has a clear color with a bulb base featuring three contact lugs. It complies with street legal regulations and has been approved by the Department of Transportation (DOT). The power rating for the high beam is 65 W, whereas the low beam operates at 35 W. In terms of size, this bulb measures approximately 5 inches in length and has a diameter of about 5 inches as well.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Bulb Technology: Halogen
- Filament Quantity: 2
- Filament Type: C-6
- Street Legal: Yes
- Halogen: Yes
- Department Of Transportation Approved: Yes
- Voltage: 12.8 V
- Ampere Rating: 5.08/2.73 A
- Power: 65/35 W
- Bulb Type: Standard Sealed Beam
- Bulb Color: Clear
- Bulb Base Type: 3 Contact Lugs
- Bulb Finish: Clear
- Beam Type: High Beam Low Beam
- Bulb Material: Glass
- Power Rating: 65/35 W
- Length: 5 in
- Diameter: 5 in
| AUTOCAR | A8360067-001 | |
|---|---|---|
| CHEVROLET | 5962548, 5965980, 5956007, 5956012, 5956013 | |
| EIKO | H6024P | |
| FED. MOGUL / WAGNER BRAKE | H5024 | |
| FREIGHTLINER/DAIMLER TRK | GEH5024, PLC H6024C1, GE H5024, GE H6024, GE6015, PLC H5024, PLC H6024 | |
| G.E. / GENERAL ELECTRIC | H5024, H6024P, 6014, 6015 | |
| I H C TRUCK | FLTH5024, GE19428, GE6015, GEH5024, TUNH5024, ZJSH5024, GE6014, 5-956-012, 962548, ZJS6015, 26576R1, 996906R1 | |
| MORGAN OLSON/ GRUMMAN | 46000013 | |
| OBSOLETE BUT WORKING | GEH5024, 6015 | |
| OTHER | FLTH5024, GE19428, GE6015, 27270C3, 5962548, 6015, GEH5024, TUNH5024, ZJSH5024, GE6014 | |
| PHILIPS LIGHTING CO | H5024 | |
| TRUCK-LITE CO | 27270C, 27270C-MP, 27270CP, 27270C3, 37270C3 | |
| UPC BAR CODE INFORMATION | 043168961264 | |
| WAGNER /COOPER / FED MOG. | H5024LL, 6014, 6015, 6015W | |
| WBI NLA | 5962548 | |
| WORKHORSE PARTS | H5024, H6024WE, 05962548, 6014, 6015, 5962548 |
| Manufacturer | Philips |
|---|---|
| Shipping Length (in) | 8.00 |
| Shipping Width (in) | 8.00 |
| Shipping Height (in) | 6.00 |
| Returnable | No |
| Weight (lb) | 2.00 |
| Core Exchange | No |
