Parker Hannifin Elbow - Hose 90 Deg - Non-Soldered Joints | 149F 12 12

Description

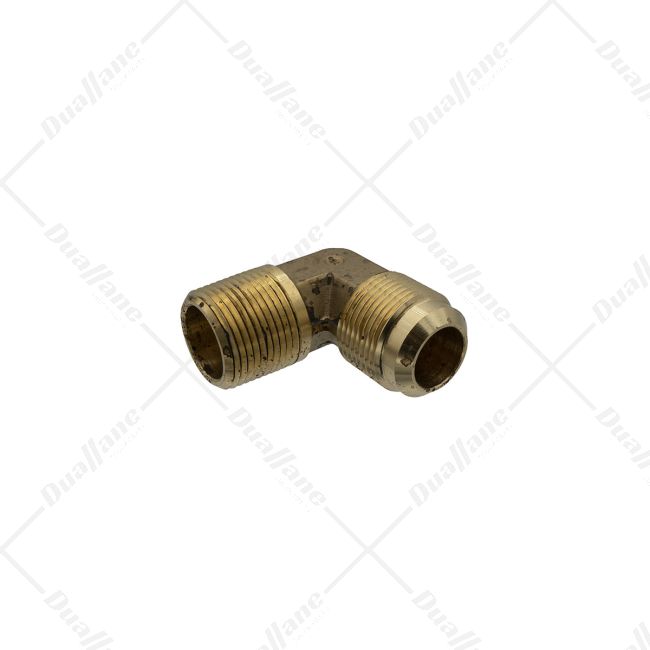

The PH 149F 12 12 hose fitting from Parker Hannifin is a convenient option for connecting pipes without the need for soldering. It has a unique design with a 90-degree bend and comes in an outer diameter of 19.05 mm and an inner diameter of 15.90 mm. On one end, the thread size is 1 1/16 14 in. while the other end features a fitting thread size of 3/4 in. This versatile elbow can be used with various types of tubing, such as aluminum, brass, copper and steel, making it suitable for a wide range of applications including pumps, gas grills, coffee makers and adapters. It can handle high operating pressures up to 2800 psi and is compatible with water, air, inert gases, non-combustible gases, flammable liquids and Freon. The design incorporates a flare fitting on one end and a male pipe fitting on the other end. The nut is made of brass while the O-ring material is fluorocarbon for enhanced durability and sealing performance. Additionally, it operates efficiently within temperatures ranging from -65.00 to +250.00 degrees Fahrenheit.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 1 Outer Diameter: 19.05 mm
• End 1 Inner Diameter: 15.90 mm
• End 1 Fitting Thread Size: 1 1/16-14 in
• End 2 Fitting Thread Size: 3/4 in
• End 1 Tube Outer Diameter: 0.75 in
• Maximum Operating Pressure: 2800 psi
• Compatibility: Aluminum, Brass, Copper and Steel Material Tubes
• Application: Pumps, Gas Grills, Coffee Makers, Adapters
• Bend Angle: 90 deg
• Elbow Angle: 90 deg
• Fitting Type: Flare to Pipe
• End 1 Fitting Type: Flare
• End 2 Fitting Type: Male Pipe
• Nut Material: Brass
• O-ring Material: Fluorocarbon
• Media Type: Water, Air, Inert and Non-Combustible Gases, Flammable Liquid, Freon
• Working Temperature Range: -65.00 to +250.00 Deg. F
