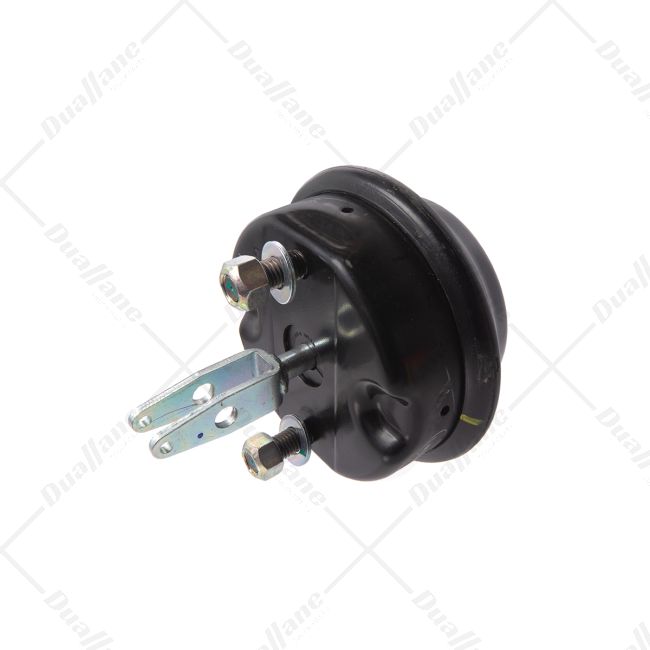

Meritor Wabco Type 24 Service Brake Chamber Left-Hand | 423 106 007 0
Have a Question for Our Team?
Description
The Type 24 Service Brake Chamber as exemplified by the WAB 423 106 007 0 model serves as a vital component within braking systems. Its cam mechanism operation guarantees effective braking performance. Constructed as a type 24, featuring dimensions of 107 mm width and 186 mm outer diameter with a 2.99-inch stroke length, it ensures reliable braking force. Operating up to 116 psi, the brake chamber contributes to safe braking operations, operating seamlessly within a temperature range of -40 to +185 degrees Fahrenheit, making it an essential element in maintaining controlled vehicle deceleration.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Working Temperature Range: -40 to +185 Deg. F
- Weight: 3.70 kg
- Yoke Included: Yes
- Version: Without Boot
- Construction Type: 24
- Operation Type: Cam
- Width: 107 mm
- Outer Diameter: 186 mm
- Overall Length: 4.69 in
- Bolt Length: 1.54 in
- Stroke Length: 2.99 in
- Bolt Thread Size: 5/8-11 UNC in
- Push Rod Length: 3.55 in
- Port Thread Size: 3/8-18 NPTF in
- Bolt Hole Center To Center Length: 4.75 in
- Push Rod Thread Size: 3/8 in
- Clevis Pin Diameter: 0.51 in
- Maximum Operating Pressure: 116 psi
- Working Pressure: 116 psi
- Maximum Pressure: 145 psi
- Spring Force: 39.34 lb. Ft
- Output Force: 1686.07 lb. Ft
MERITOR | 24SCLW3 |
---|
Manufacturer | Meritor Wabco |
---|---|
Shipping Length (in) | 9.00 |
Shipping Width (in) | 9.00 |
Shipping Height (in) | 9.00 |
Returnable | Yes |
Weight (lb) | 7.28 |
Core Exchange | No |
