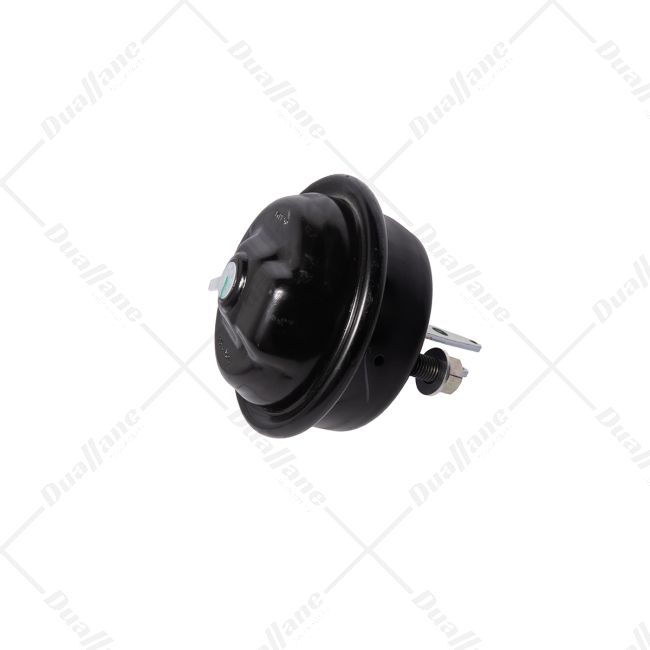

Meritor Wabco Type 20 Service Brake Chamber | 423 105 011 0

Description

The Type 20 Service Brake Chamber, represented by the WAB 423 105 011 0 model is an integral component of braking systems. Operating through a cam mechanism, this brake chamber construction type 20 ensures reliability. With dimensions of 100.50 mm width and 175 mm outer diameter and a stroke length of 2.52 inches, it generates brake force efficiently. Operating at pressures up to 145 psi, this component thrives within the temperature range of -40 to +185 degrees Fahrenheit, playing a crucial role in ensuring safe and controlled braking in various vehicles.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Working Temperature Range: -40 to +185 Deg. F
• Yoke Included: Yes
• Version: Without Boot
• Type: 20
• Operation Type: Cam
• Width: 100.50 mm
• Outer Diameter: 175 mm
• Overall Length: 4.17 in
• Bolt Length: 1.54 in
• Stroke Length: 2.52 in
• Bolt Thread Size: 5/8-11 UNC in
• Push Rod Length: 3.55 in
• Port Thread Size: 3/8-18 NPTF in
• Bolt Hole Center To Center Length: 4.75 in
• Push Rod Thread Size: 3/8 in
• Clevis Pin Diameter: 0.51 in
• Maximum Operating Pressure: 145 psi
• Working Pressure: 116 psi
• Maximum Pressure: 145 psi
• Spring Force: 44.96 lb. Ft
• Output Force: 1506.22 lb. Ft
