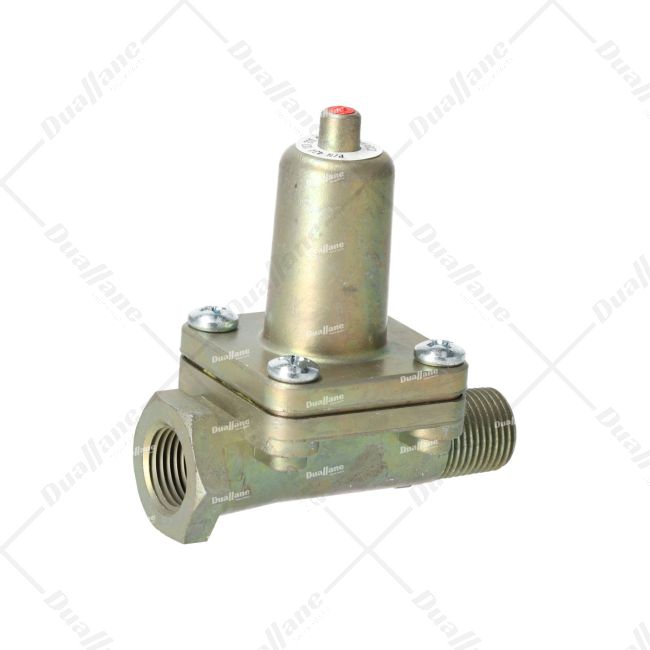

Meritor Wabco Air Dryer Pressure Control Check Valve | 434 100 310 0
SKU
WAB 434 100 310 0
MPN
434 100 310 0
$85.33
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:00 PM ET
The WAB 434 100 310 0 is an Air Dryer Pressure Control Check Valve. It is designed to control and regulate the pressure in an air dryer system. The valve has a crack pressure of 8.20 bar, which means it opens and allows air flow when the pressure reaches that level. The valve has a nominal diameter of 0.31 inches and features a return flow design. It can withstand a working temperature range of -40.00 to +80.00 degrees Celsius. The port thread size is 1/2-14 NPTF, allowing for easy installation in the air dryer system.
Description
The WAB 434 100 310 0 is an Air Dryer Pressure Control Check Valve. It is designed to control and regulate the pressure in an air dryer system. The valve has a crack pressure of 8.20 bar, which means it opens and allows air flow when the pressure reaches that level. The valve has a nominal diameter of 0.31 inches and features a return flow design. It can withstand a working temperature range of -40.00 to +80.00 degrees Celsius. The port thread size is 1/2-14 NPTF, allowing for easy installation in the air dryer system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Volume: 0.50 L
- Port Thread Size: 1/2-14 NPTF in
- Nominal Diameter: 0.31 in
- Crack Pressure: 8.20 bar
- Type: With Return Flow
- Working Temperature Range: -40.00 to +80.00 Deg.C
| AL-KO KOBER CORP DIV OF HAYES AXLES | 15333 | |
|---|---|---|
| AUTOMANN | 170.S4341003100 | |
| BENDIX | 65677 | |
| BLASTER | 16ATC | |
| MERITOR | S4341003100 | |
| PAI | 940590 | |
| S&S TRUCK PARTS | S-15333 | |
| X-TRA SEAL | 17582 |
| Shipping Weight (lb) | 3.00 |
|---|---|
| Manufacturer | Meritor Wabco |
| Shipping Length (in) | 12.00 |
| Shipping Width (in) | 7.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Core Exchange | No |
