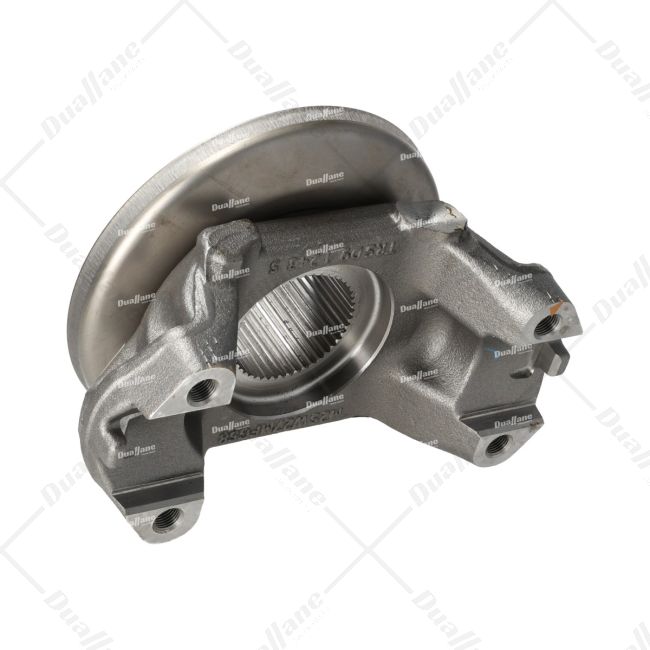

Meritor RPL25 End Yoke | 25WYS38 13A4

Description

The TDA 25WYS38 13A4 Meritor RPL25 End Yoke is an important part of the driveline system found in heavy-duty vehicles. This particular end yoke is specifically designed to connect the driveline with the rear axle, allowing for a smooth and effective transfer of power from the transmission to the wheels. Its primary function is to uphold the integrity and efficiency of the driveline, ensuring that the vehicle can move forward without any issues. It's vital to properly maintain and replace the end yoke when necessary to guarantee optimal performance and overall reliability of the vehicle's driveline system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Number of Spline: 46I
• Series: RPL25
• Spline Diameter: 2.390 in.
• Hub Diameter: 3.25 in.
• Spline Length: 2.32 in.
• Face To End: 4.73 in.
• Counter Bore Depth: 0.14 in.
• Joint Angle: 30 degrees
• Use U-Joint Kit: CP25RPLS
• Deflector: DEFR64-10
• Bearing Cap Diameter: 2.06 in.
• Use Kit: KIT RPL 25 20
• Yoke Dimension Across Nibbs: 8.38 in.
