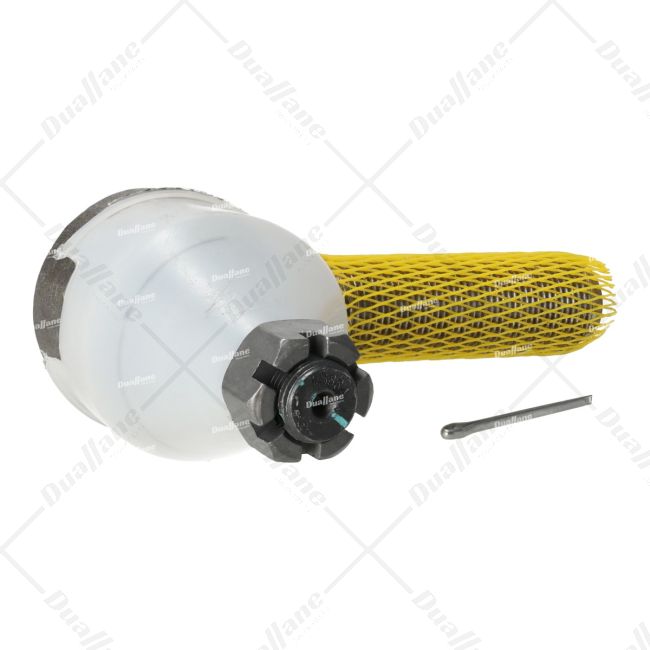

Meritor Left-Hand Tie Rod End | A3144T1190

Description

The TDA A3144T1190, which is also known as the Left-Hand Tie Rod End by Meritor, plays a vital role in the steering system of a vehicle. This particular tie rod end is specially designed for the left side of the vehicle and connects the steering linkage to the steering knuckle. Its purpose is to facilitate changes in direction when the driver turns the steering wheel. It is essential to properly maintain and replace the tie rod end as needed to ensure safe and precise control over steering, thereby contributing to overall road safety and stability.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Type: 1
• Large Taper Diameter: 1.10 in.
• Rod Thread Diameter: 1.125 in.
• Rod Threads per in: 12
• Rod Thread Direction: LH
• Notes: Zerk on bottom
• Small Taper Diameter: 0.967 in.
• Stud Center to Rod End: 5.50 in.
• Stud Thread Diameter: 0.875 in.
• Stud Threads per in: 14
• Style: Curbside
• Taper Length: 1.06 in.
