Meritor Left-Hand Thread Tie Rod End | R230072

Description

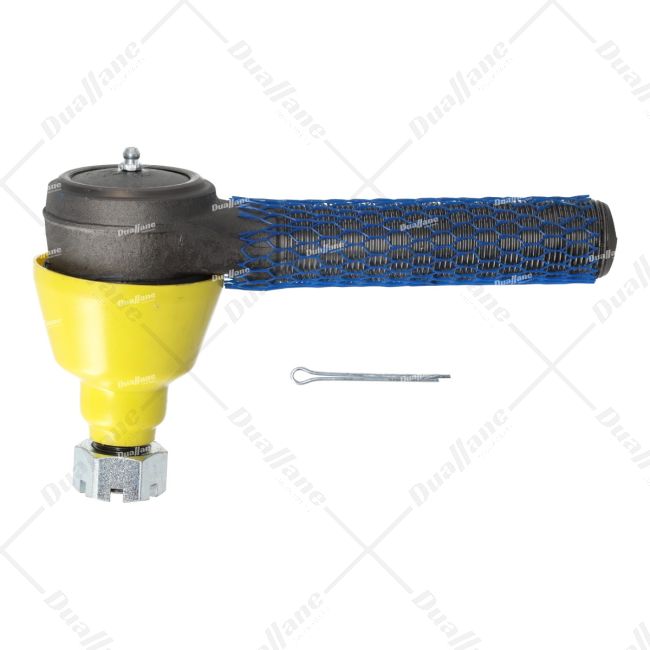

The TDA R230072 is a left-hand threaded tie rod end, also known as ES2090L in the industry. It is an essential component of a vehicle's steering system. This tie rod end has a larger taper diameter of 1.25 inches and a smaller taper diameter of 1.08 inches. The rod thread diameter measures 1.25 inches with 12 threads per inch, while the stud thread diameter measures 0.875 inches with 14 threads per inch. Specifically designed for the roadside of the vehicle, it has a taper length of 1.36 inches and features a zerk fitting at the bottom for lubrication purposes. The primary function of this tie rod end is to transmit steering motion from the steering gear to the wheels, ensuring precise and smooth control over steering operations.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Type: 1
• Industry Number: ES2090L
• Large Taper Diameter: 1.25 in.
• Rod Thread Diameter: 1.25 in.
• Rod Threads per in: 12
• Rod Thread Direction: LH
• Notes: Zerk on bottom
• Small Taper Diameter: 1.08 in.
• Stud Center to Rod End: 7.37 in.
• Stud Thread Diameter: 0.875 in.
• Stud Threads per in: 14
• Style: Roadside
• Taper Length: 1.36 in.
