Meritor Left-Hand Brake Camshaft | R607325

Description

The TDA R607325 is a part known as the Left-Hand Brake Camshaft, which plays a role in the drum brake system of a vehicle. Its location on the side allows it to transfer force from the brake actuator to engage the brake shoes with the brake drum, generating braking force. This mechanism efficiently converts mechanical pressure into mechanical force to ensure effective braking and safe deceleration or stopping of the vehicle. The left-hand brake camshaft is a component that guarantees quick braking performance on the vehicle's left side, contributing significantly to overall road safety.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Camshaft Spline Count: 28
• Effective Length: 11.03 in.
• Bushing Journal Length: 2.51 in.
• Left or Right: LH
• Camshaft Spline Diameter: 1.50 in.
• Head Type: 02
• OE Mfg.: Hendrickson
• Axle: Trailer
• Camshaft Repair Kit: R615024, R615025
• Brake Hardware Kit: KIT8000HD

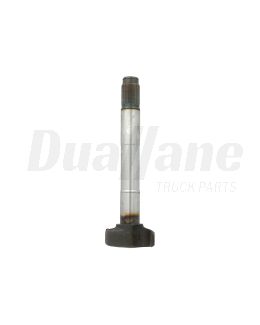

• Paired Camshaft: R607326
• Brake Type: Intraax
• Notes: Can be used with enclosed cam tube or exposed cam 2.00 in. O.D. bushing and seal.
