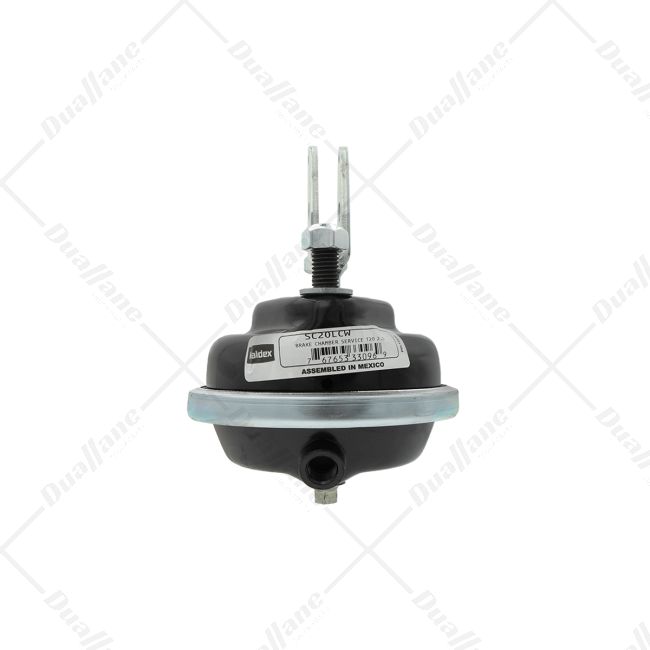

Haldex Welded Clevis Service Brake Chamber | SC20LCW

Description

The HDX SC20LCW emerges as a service chamber, engineered for use within a vehicle's braking system. Operating as a linchpin, this component transforms air pressure into mechanical force, assisting the brakes and securing dependable braking performance. To keep the integrity of the braking system and ensure safe driving, consistent maintenance and thorough inspection of the service chamber are imperative. In matters involving brake components, strict adherence to the manufacturer's instructions and safety protocols is essential to guarantee accurate installation and smooth operation.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Air Port Position: 0 deg
• Stroke Length: 2.50 in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Service Clamp band: 6.8 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 4.20 in
• Push Rod Length From Face Of Service Housing: 1 in
• Inlet Position Angle: 0 deg
• Air Port Thread Size: 3/8-18 NPTF in
• Maximum Pressure: 150 psi
