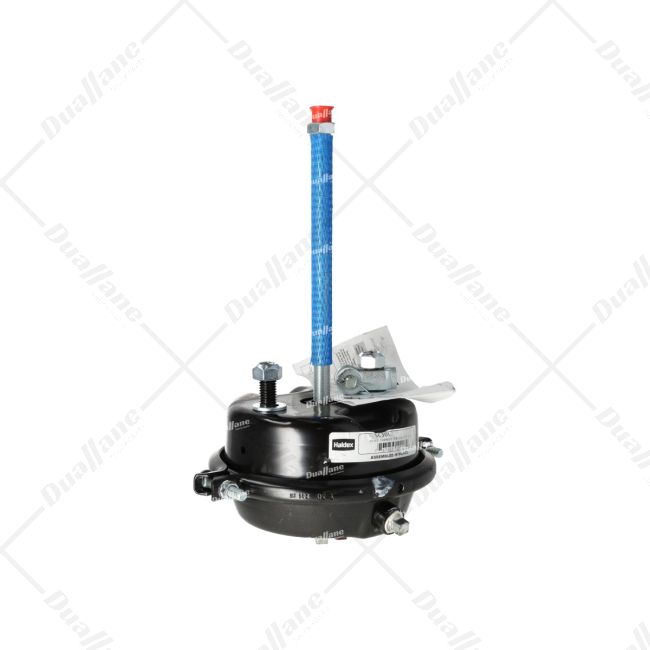

Haldex Welded Clevis Brake Chamber Assembly T30, 3.00, 10.00 | SC30L
SKU
HDX SC30L
MPN
SC30L
$62.25
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The HDX SC30L brake chamber assembly is a type T30 with a stroke of 3.00 inches and a maximum push rod length of 10.00 inches. It comes with a welded clevis that connects the push rod to the brake slack adjuster. This assembly is commonly found in air brake systems of heavy-duty vehicles, playing a crucial role in controlling brake activation. It's important to properly maintain and inspect this assembly to ensure the safe and dependable operation of the vehicle's braking system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Air Port Position: 90 deg
- Service Clamp band Position: 0 deg
- Chamber Type: 30
- Stroke Length: 3 in
- Push Rod Length: 10 in
- Inlet Port Thread Size: 3/8-18 NPTF in
- Stud Distance: 120.7 mm
- Dimension At Service Clamp band: 10.2 in
- Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
- Length From Mounting Bracket To Spring Housing End: 4.20 in
- Push Rod Length From Face Of Service Housing: 10 in
- Inlet Position Angle: 90 deg
- Air Port Thread Size: 3/8-18 NPTF in
- Maximum Pressure: 150 psi
| FREIGHTLINER | ABPN42A30SC3ND | |
|---|---|---|
| HALDEX | SC30L | |
| MGM | BRAKES1431001 | |
| NAPA | HD30S-LS | |
| TSB | 30SCN3 | |
| OTHER | HDXSC30L, XSC30L, ABPN42A30SC3ND, PLBSC30LS, HD30SLS |
| Manufacturer | Haldex |
|---|---|
| Shipping Length (in) | 18.00 |
| Shipping Width (in) | 18.00 |
| Shipping Height (in) | 12.00 |
| Returnable | Yes |
| Weight (lb) | 8.70 |
| Core Exchange | No |
