Haldex SC30 Service Chamber Haldex | SC30

Description

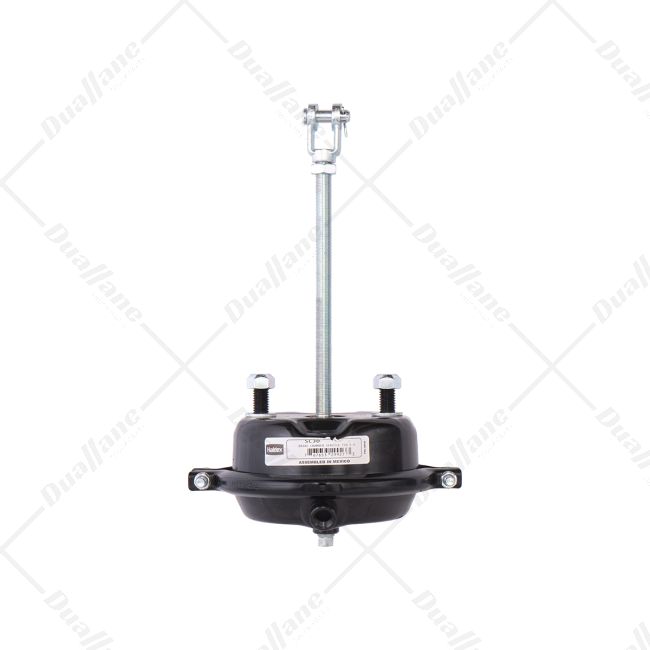

The HDX SC30 brake chamber assembly is specially designed for heavy-duty vehicles' air brake systems. It plays a role in controlling the brake activation by utilizing a 2.50-stroke mechanism. The T30 designation signifies its chamber size, while the 2.50 stroke indicates the distance traveled by the push rod to engage the brakes. To guarantee the vehicle's braking system operates safely and efficiently, it is essential to maintain and inspect this brake chamber assembly.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Width: 107 mm
• Outer Diameter: 208 mm
• Stroke Length: 2.50 in
• Inlet Port Thread Size: 3/8-18 NPTF in
• Stud Distance: 120.7 mm
• Dimension At Service Clamp band: 10.2 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 3.70 in
• Push Rod Length From Face Of Service Housing: 10 in
• Inlet Position Angle: 90 deg
• Air Port Thread Size: 3/8-18 NPTF in
• Maximum Pressure: 150 psi
