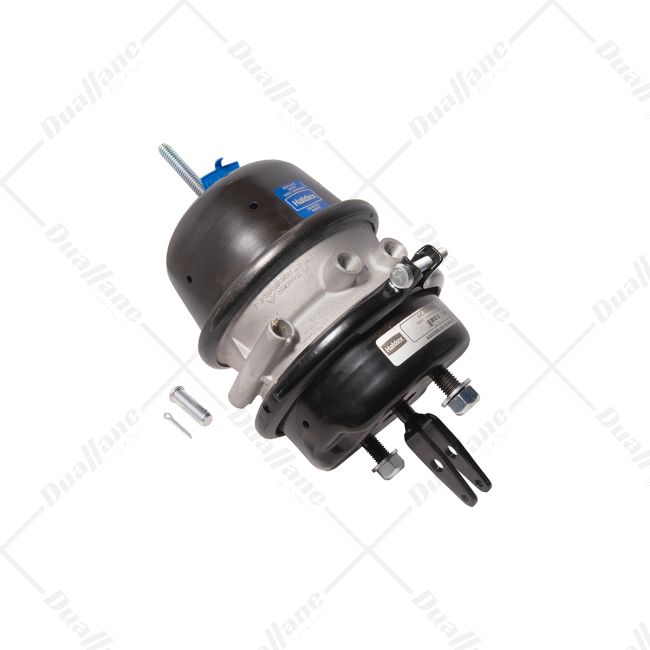

Haldex 3030 Combo Brake Chamber w/ Welded Clevis | GC3030CW

Description

The HDX GC3030CW comprises a stroke unit with a welded yoke seamlessly integrated into air brake systems, catering to heavy-duty commercial vehicles. Operating as a linchpin, this stroke unit orchestrates the measurement of pushrod travel within the brake chamber during braking, consequently guaranteeing apt brake adjustment and unwavering braking performance. The CW element in the part number alludes to a specific configuration or design nuance tailored for distinct applications or vehicle models. Notably, the welded yoke denotes the construction of the yoke—a critical component that fosters the linkage between the pushrod and the slack adjuster fostering efficient brake functionality.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Stroke Length: 2.50 in
• Minimum Width: 10.20 in
• Stud Distance: 120.7 mm
• Dimension At Rolled Spring Housing Flange: 8.30 in
• Dimension At Service Clamp band: 10.2 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 9 in
• Piggyback Length: 6.80 in
• Push Rod Length From Face Of Service Housing: 1 in
• Inlet Position Angle: 90 deg
• Finish: Powder Coated
• Housing Material: Steel
• Bearing Material: Plastic
• Housing Finish: Powder Coated
• Diaphragm Material: Rubber
