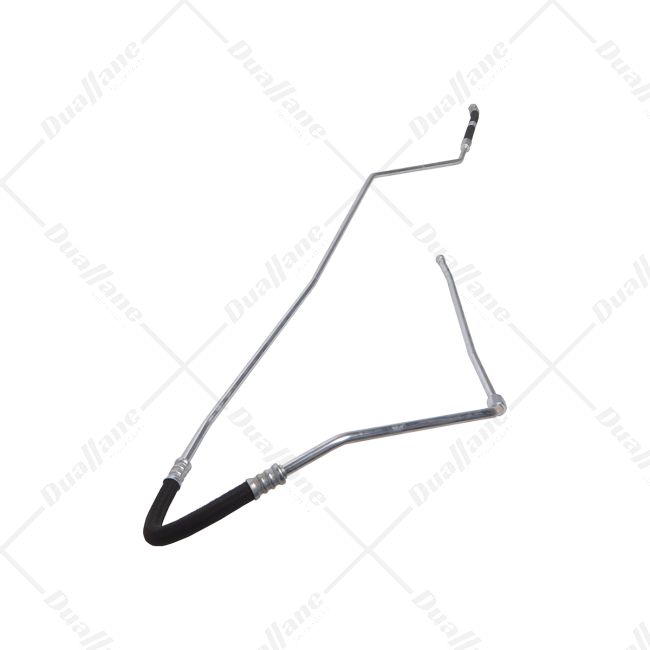

Freightliner Transmission Oil Cooler Supply Line, MBE Automated Manual Transmission, DD13 | 07-22802-001

Description

The Freightliner Transmission Oil Cooler Supply Line with the part number 07-22802-001 is specifically designed for use with the MBE Automated Manual Transmission and DD13 engines. Its main function is to cool the transmission fluid in challenging conditions. This supply line is capable of withstanding temperatures ranging from -40 to 300 degrees Fahrenheit. It can handle a maximum operating pressure of 250 psi. It is constructed using durable steel material that has been zinc-plated to provide protection against corrosion. The overall length of this supply line measures 2740 mm. It comes equipped with #8 fittings on both ends. One end features a 37-degree flare fit angle while the other end has a straight female swivel nut. By maintaining the operating temperature of the transmission, this supply line contributes significantly to enhancing the performance and lifespan of both the MBE Automated Manual Transmission and DD13 engines.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Temperature Rating: -40 to 300 Deg. F
• Maximum Operating Pressure: 250 psi
• Thickness: 1.27 mm
• Outer Diameter: 12.70 mm
• Inner Diameter: 10.16 mm
• Overall Length: 2740 mm
• Tube 2 Inner Diameter: 12.70 mm
• Tube 2 Wall Thickness: 7.62 mm
• End 2 Flare Fit Angle: 37 deg
• Standard End 2 Fitting Size: #8
• Standard End 1 Fitting Size: #8
• Material: Steel
• Finish: Zinc Plated
• End 1 Fitting Type: Flare Nut and Sleeve
• End 2 Fitting Type: Straight Female Swivel Nut
