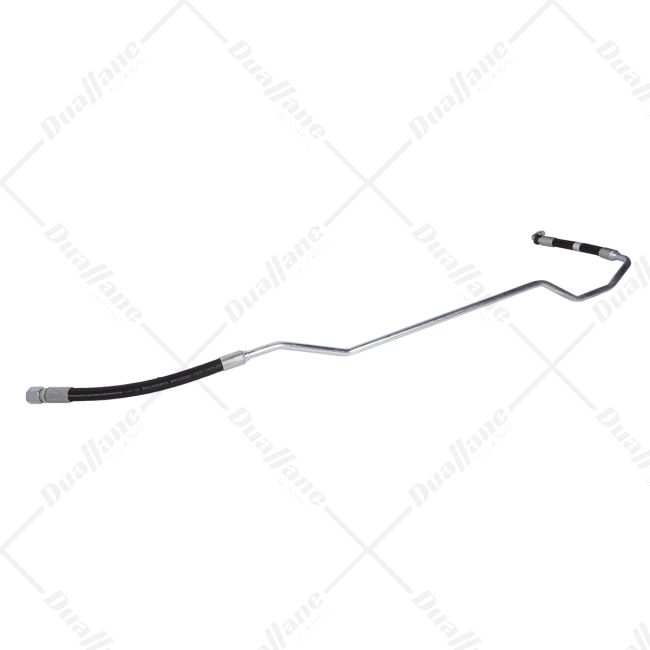

Freightliner Transmission Oil Cooler Return Hose, 114sd, Without Power Take Off | 07-22707-000

Description

The Freightliner Transmission Oil Cooler Return Hose, also known as the 07-22707-000 model, is a part that helps keep a vehicle's transmission system running smoothly. Specifically designed for the 114sd model without power take off, this hose is built to handle various conditions. It can withstand temperatures ranging from -40 to 300 degrees Fahrenheit and has an operating pressure of 250 psi. With a length of 2092.90 mm, it features a 90-degree elbow fitting at one end with a #12 size and a straight female swivel nut. At the end, there's a connector with a flare fit angle of 37 degrees. Made from steel and coated with zinc for corrosion resistance, this hose is highly durable and ensures lasting performance. Its primary function is to maintain circulation and cooling of transmission fluid, contributing significantly to the vehicle's reliability and performance.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Temperature Rating: -40 to 300 Deg. F
• Maximum Operating Pressure: 250 psi
• Thickness: 1.24 mm
• Outer Diameter: 19.05 mm
• Inner Diameter: 16.56 mm
• Overall Length: 2092.90 mm
• Tube 2 Inner Diameter: 19.05 mm
• End 1 Flare Fit Angle: 90 deg
• End 1 Elbow Fitting Angle: 90 deg
• End 2 Flare Fit Angle: 37 deg
• Standard End 1 Fitting Size: #12
• Material: Steel
• Finish: Zinc Plated
• End 1 Fitting Type: Straight Female Swivel Nut
• End 2 Fitting Type: Quick Connector
