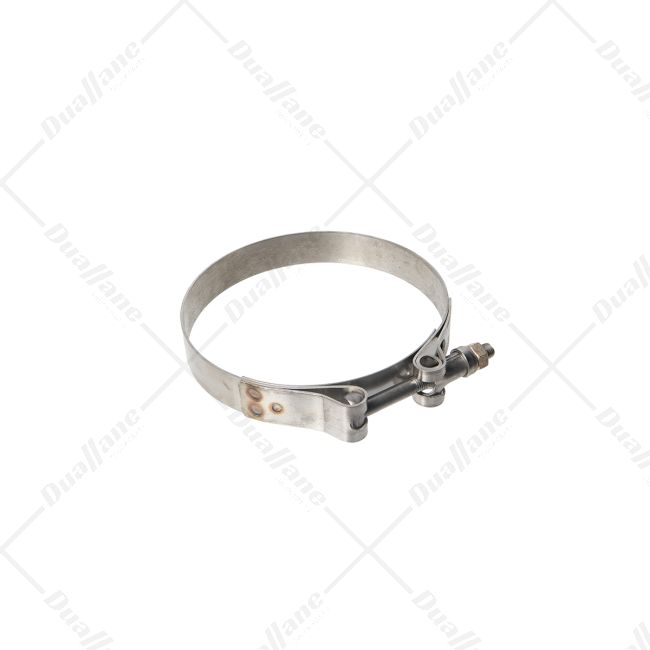

Freightliner T-Bolt Clamp, 5 Inch | 04-20164-001
Have a Question for Our Team?
Description
The 04-20164-001 serves as a T-bolt clamp that finds its purpose in the exhaust system. Its primary function is to securely fasten a 5 inch diameter exhaust pipe or component. T-bolt clamps are renowned for their firm grip and reliability, ensuring that the various parts of the exhaust system remain tightly connected while minimizing vibrations and preventing leaks. Crafted from durable materials, this clamp possesses the resilience needed to withstand the high temperatures and challenging conditions encountered in an exhaust system. By providing an accurate fit for specific DTNA vehicle applications, it significantly contributes to optimizing the overall performance and efficiency of the exhaust system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Tightening Torque: 11.30 Nm
- Nut Type: Lock Nut
- Nut Material: stainless steel
- Bolt Material: stainless steel
- Band Material: stainless steel
- Bolt Type: T-Bolt
- Width: 0.87 in
- Thickness: 0.05 in
- Inner Diameter: 4.13 in
- Nut Thread Size: 5/16-24 UNF2B in
- Maximum Diameter: 138.20 mm
- Screw Size: 5/16-24 X 3.25 in
- Clamping Range: 130.30 - 138.20 mm
- Minimum Diameter: 130.30 mm
- Bolt Thread Size: 5/16-24 UNF2A in
- Nominal Diameter: 134.30 mm
- Band Width: 22.20 mm
- Band Thickness: 1.27 mm
- Grip Range: 5.15 to 5.44 in
| DYNAFLEX PRODUCTS | 02-8-050-221 |
|---|
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 8.00 |
| Shipping Width (in) | 8.00 |
| Shipping Height (in) | 6.00 |
| Returnable | Yes |
| Weight (lb) | 0.75 |
| Core Exchange | No |
