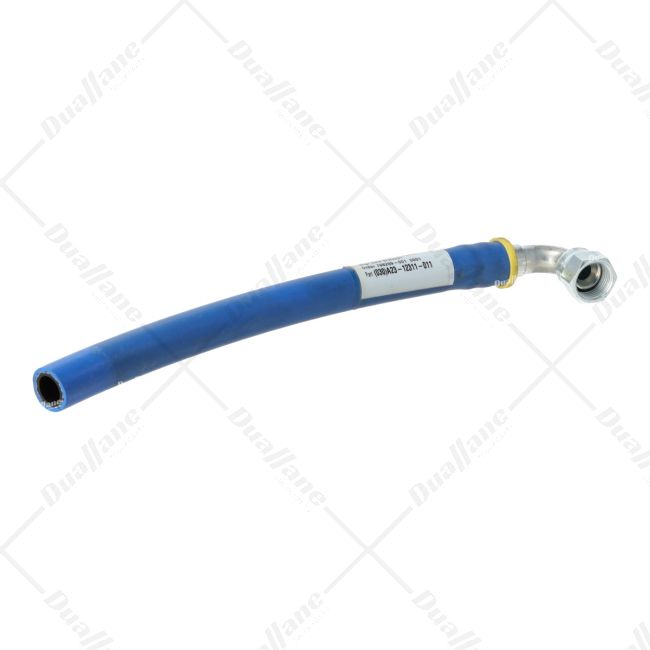

Freightliner Swivel Elbow Hose Assembly, Size 8 | A23-12311-011

Description

The A23-12311-011 is a HOSE - ASSEMBLY SWIVEL ELBOW SIZE 8 designed with a 90-degree elbow swivel nut fitting. It has a thickness of 0.13 in. and an inner diameter of 0.50 in. The hose has an inner diameter of 0.51 in. and a length of 9.75 in. with an outer diameter of 0.75 in. The nut thread size is 3/4-16 in. and the hose has a center-to-center length of 11 in. It features a working temperature range of -40 to +150 Deg. C, a maximum working pressure of 250 psi and a burst pressure of 1000 psi. The hose is made of synthetic rubber with steel fittings.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Thickness: 0.13 in
• Inner Diameter: 0.50 in
• Hose Inner Diameter: 0.51 in
• Hose Length: 9.75 in
• Hose Outer Diameter: 0.75 in
• Nut Thread Size: 3/4-16 in
• Center To Center Length: 11 in
• Hose Wall Thickness: 0.12 in
• End 1 Flare Fit Angle: 37 deg
• End 1 Elbow Fitting Angle: 90 deg
• End 1 Fitting Thread Size: 3/4-16 in
• Standard Hose Size: #8
• Working Temperature Range: -40 to +150 Deg.C
• Material: Synthetic Rubber
• End 1 Fitting Type: Elbow Swivel Nut
• Fitting Material: Steel
• Maximum Working Pressure: 250 psi
• Burst Pressure: 1000 psi
