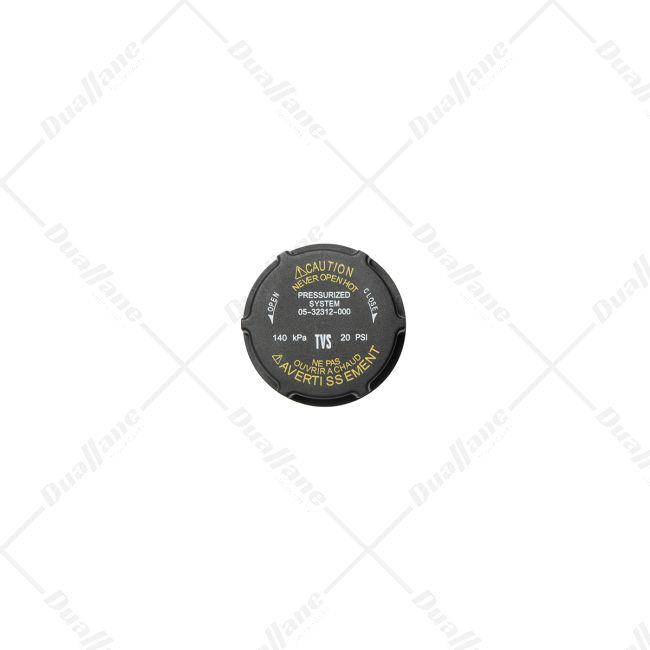

Freightliner Surge Tank Cap, 20 Pound Square Inch | 05-32312-000
Have a Question for Our Team?
Description
The 05-32312-000 serves as a cap specifically made for surge tanks that can handle up to 20 pounds per square inch (psi) of pressure. Surge tanks are vital components in a vehicle's cooling system as they help regulate and stabilize the flow and pressure of coolant. The cap itself plays a critical role in maintaining the necessary pressure levels within the surge tank, ensuring efficient cooling by preventing coolant from boiling. It securely fits onto the surge tank and features a pressure relief valve that opens when the pressure exceeds the set limit, allowing any excess coolant to escape and safeguarding against potential damage to the cooling system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Cap Maximum Pressure Rating: 20 psi
- O-ring Material: EPDM (Synthetic Rubber)
- Cap Material: Nylon
- Gasket Material: Nitrile Rubber
- O-rings Included: Yes
- Width: 36.40 mm
- Outer Diameter: 62 mm
- Inner Diameter: 38.10 mm
- Thread Size: S50X2.5 in
- Thread Length: 14.90 mm
- Cap Inner Diameter: 38.10 mm
- Maximum Cap Width: 36.40 mm
| OTHER | 05-32313-000 |
|---|
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 6.00 |
| Shipping Width (in) | 4.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Weight (lb) | 0.11 |
| Core Exchange | No |
