Freightliner Shock Absorber - SAC, 341/536, 19/57, 10-23K | 10-13760-000

Description

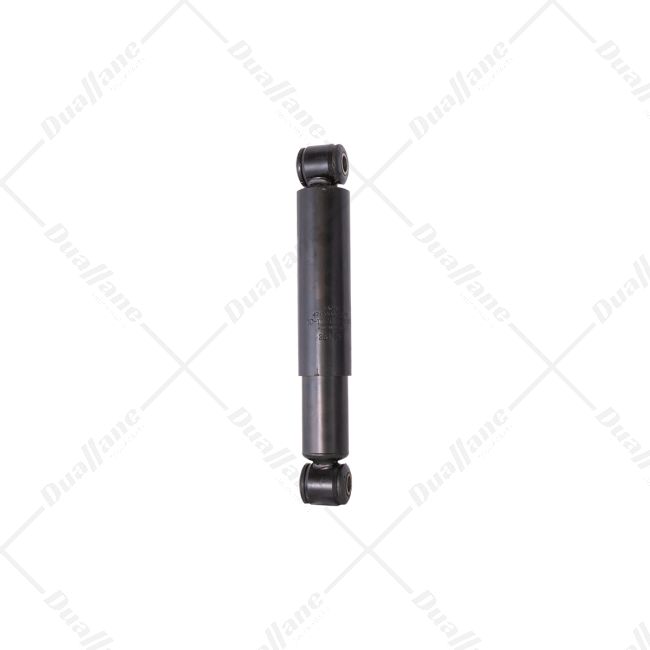

The 10-13760-000 is a Freightliner Shock Absorber designed for steer axels and provides reliable support and damping. The stroke length is 195 mm, and the bore diameter is 36 mm, contributing to its effectiveness in absorbing shocks. The shock tube has a diameter of 55 mm, and the cover diameter is 64 mm. With a compressed length of 341 mm and an extended length of 536 mm, it offers flexibility in its application.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Mounting Location: Front
• Maximum Compression Force: 510 N
• Basic Static Load Rating: 30000 N
• Stroke Length: 195 mm
• Bore Diameter: 36 mm
• Shock Tube Diameter: 55 mm
• Cover Diameter: 64 mm
• Compressed Length: 341 mm
• Extended Length: 536 mm
• Piston Rod Diameter: 15 mm
• Rebound: 4760 N
