Out of stock
Freightliner Shock Absorber Assembly, 363/582, 19/45, 1.38 | 16-17684-000
SKU
FL 16-17684-000
MPN
16-17684-000
Special Price
$71.46
Regular Price
$89.32
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description

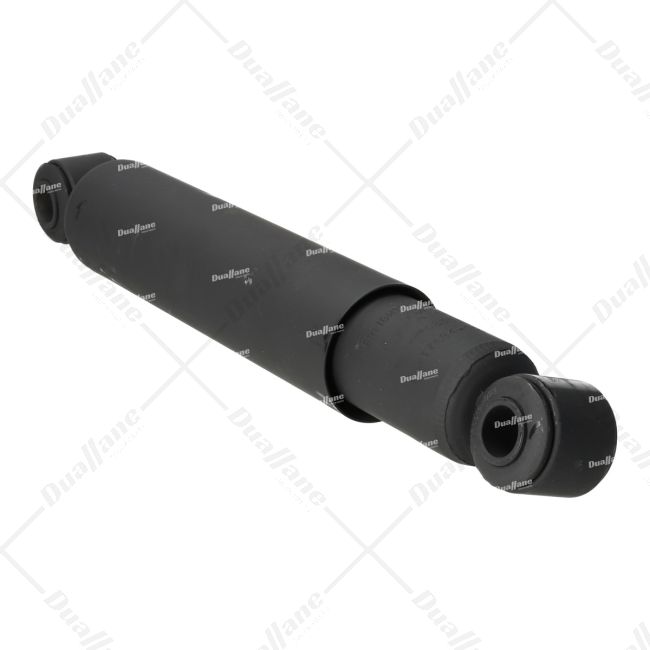

The 16-17684-000 Freightliner Shock Absorber Assembly designed for ARV (Auxiliary Return Valve) applications with a compression rating of 363 pounds and a rebound rating of 582 pounds. The shock absorber has a travel distance of 19 inches for compression and 45 inches for rebound. The assembly has a piston size of 1.38 inches, making it suitable for specific suspension systems that require these specifications. It plays a crucial role in dampening and absorbing the shocks and vibrations generated during vehicle operation, contributing to a smoother and more controlled ride.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Mounting Location: Front
- Maximum Compression Force: 923 N
- Maximum Pull Capacity: 12000 lbs.
- Stroke Length: 218.80 mm
- Bore Diameter: 34.93 mm
- Shock Tube Diameter: 50.80 mm
- Shock Extended Length: 581.50 mm
- Cover Diameter: 60.20 mm
- Shock Compressed Length: 362.71 mm
- Rebound: 4109 N
| MERITOR | M85058 |
|---|
| Shipping Weight (lb) | 11.00 |
|---|---|
| Manufacturer | Freightliner |
| Shipping Length (in) | 24.00 |
| Shipping Width (in) | 6.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Core Exchange | No |
