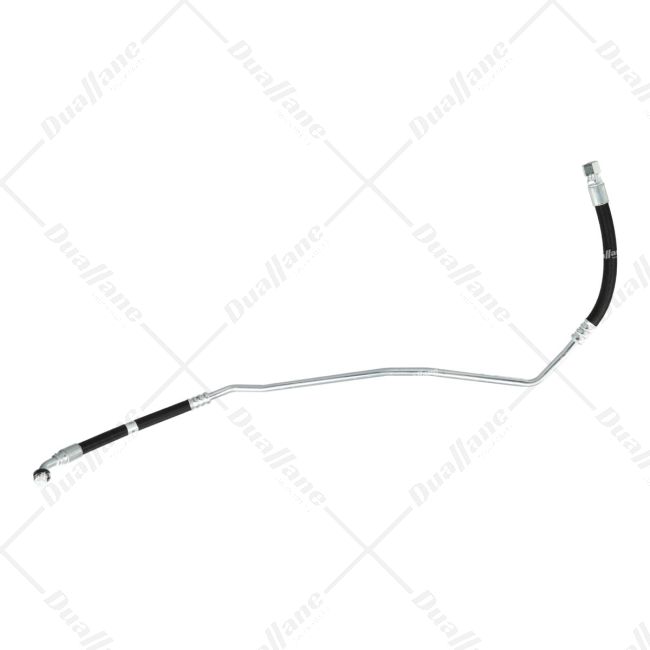

Freightliner Return Tube, ITOC, ISB, 1K, 2K | 07-23266-000

Description

The 07-23266-000 serves as a return tube within the transmission cooling system. Its main purpose is to transport the heated transmission fluid back to the oil cooler for cooling and re-circulation. This particular tube is specifically designed to be used in conjunction with the ITOC (Integrated Transmission Oil Cooler) and is compatible with ISB engine models featuring 1K and 2K configurations. It's crucial to use the correct tube that matches your vehicle model and transmission type to ensure proper fit and functionality. Regular maintenance and inspection of this tube are important in order to prevent any potential leaks or problems with the transmission cooling system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Temperature Rating: -40 to 300 Deg. F
• Maximum Operating Pressure: 250 psi
• Thickness: 1.27 mm
• Outer Diameter: 19.05 mm
• Inner Diameter: 16.48 mm
• Overall Length: 1806.70 mm
• Tube 2 Inner Diameter: 19.05 mm
• Tube 2 Wall Thickness: 7.37 mm
• End 1 Flare Fit Angle: 37 deg
• End 2 Flare Fit Angle: 45 deg
• Standard End 2 Fitting Size: #12
• Standard End 1 Fitting Size: #12
• End 2 Elbow Fitting Angle: 45 deg
• Material: Steel
• Finish: Zinc Plated
• End 1 Fitting Type: Straight Female Swivel Nut
• End 2 Fitting Type: Quick Connector
