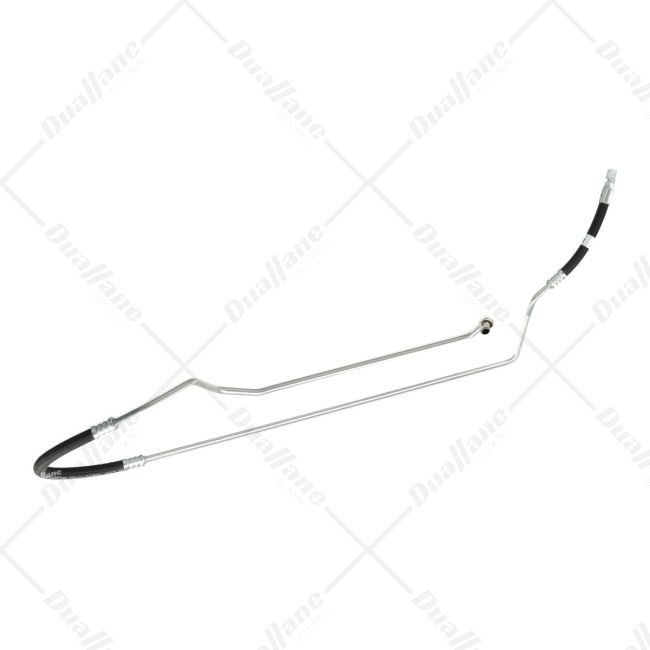

Freightliner Return Tube, ISX14.9 | 07-23100-000

Description

The 07-23100-000 tube is specifically designed for the ISX14.9 engine and FR1400 transmission. Its main function is to carry transmission fluid from the transmission oil cooler back to the transmission after it has been adequately cooled. This tube plays a crucial role in maintaining the correct temperature and lubrication of the transmission components, ensuring smooth operation and a longer lifespan. It is highly recommended to regularly inspect and maintain this return tube to avoid any potential leaks or problems with the transmission system. By doing so, you can ensure optimal efficiency and performance of your vehicle's transmission overall.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Temperature Rating: -40 to 300 Deg. F
• Maximum Operating Pressure: 250 psi
• Thickness: 1.27 mm
• Outer Diameter: 12.70 mm
• Inner Diameter: 10.16 mm
• Overall Length: 2571.80 mm
• Tube 2 Inner Diameter: 12.70 mm
• Tube 2 Wall Thickness: 7.62 mm
• End 2 Flare Fit Angle: 37 deg
• Standard End 2 Fitting Size: #8
• Standard End 1 Fitting Size: #8
• Material: Steel
• Finish: Zinc Plated
• End 1 Fitting Type: Flare Nut and Sleeve
• End 2 Fitting Type: Straight Female Swivel Nut
