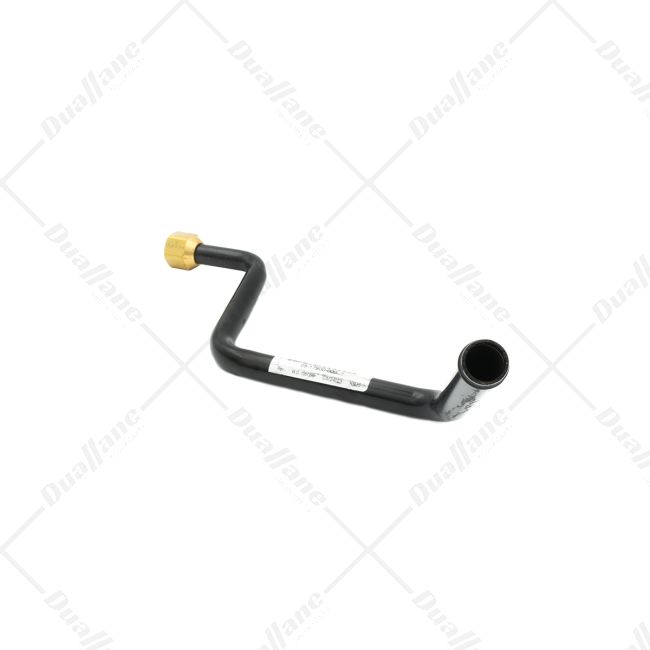

Freightliner Main Return Heater Pipe Line | 05-17900-000

Description

Part number 05-17900-000 is a heater pipe that is used in the vehicle's heating system for the return. This particular heater pipe does not have a valve. Its purpose is to allow cooled coolant from the heating system to flow back to the engine. The absence of a valve means that the coolant flows constantly and without any regulation through the return. This heater pipe is constructed using materials that can withstand temperatures and pressure within the cooling system. Its role is vital in ensuring that the vehicle's heating system functions by delivering the correct temperature of coolant to keep the engine running efficiently.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Material: Steel
• Finish: Painted
• End 1 Fitting Type: Female Nut
• Maximum Working Pressure: 200 psi
• Outer Diameter: 19.05 mm
• Inner Diameter: 16.56 mm
• Wall Thickness: 1.25 mm
• Flare Fit Angle: 45 deg
• Center To Center Length: 345.70 mm
• End 1 Fitting Thread Size: 1 1/16-14 in
