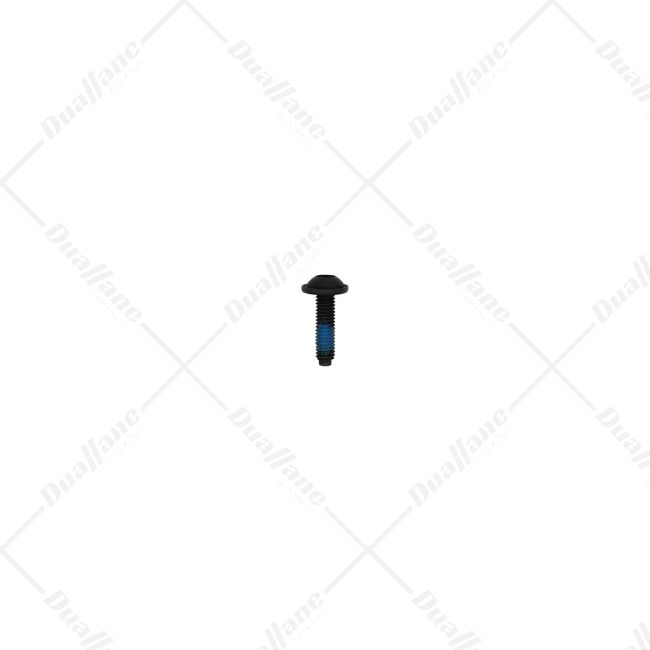

Freightliner Machine Screw, Round Head, Dog Point, M6 X 1.00 X20 Mm | 23-13578-020
Have a Question for Our Team?
Description
The 23-13578-020 is a machine screw with a round head and a hexalobular drive head commonly known as a Torx head. It has a dog point which is a type of set screw with a flat tip allowing it to create a secure connection when fastened against a mating surface. The dimensions of the screw are M6 x 1.00 X20 MM, indicating that it has a metric thread size with a diameter of 6 millimeters, a pitch of 1.00 millimeters and a length of 20 millimeters. This type of screw is often used in various applications that require a secure and reliable fastening solution with the added advantage of the Torx head, which provides better torque transmission and reduced risk of stripping compared to traditional screw heads.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Length: 0.78 in
- Thread Size: M6X1 mm
- Head Diameter: 0.57 in
- Washer Thickness: 0.07 in
- Material: Steel
- Finish: Passivated and Black Oxide
- Head Type: Round - Torx Socket
- Socket Type: Torx
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 6.00 |
| Shipping Width (in) | 4.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Weight (lb) | 0.16 |
| Core Exchange | No |
