Freightliner Hexagonal Recess Round Washer Head Screw, M6 X 1.0 | 23-13602-012

Description

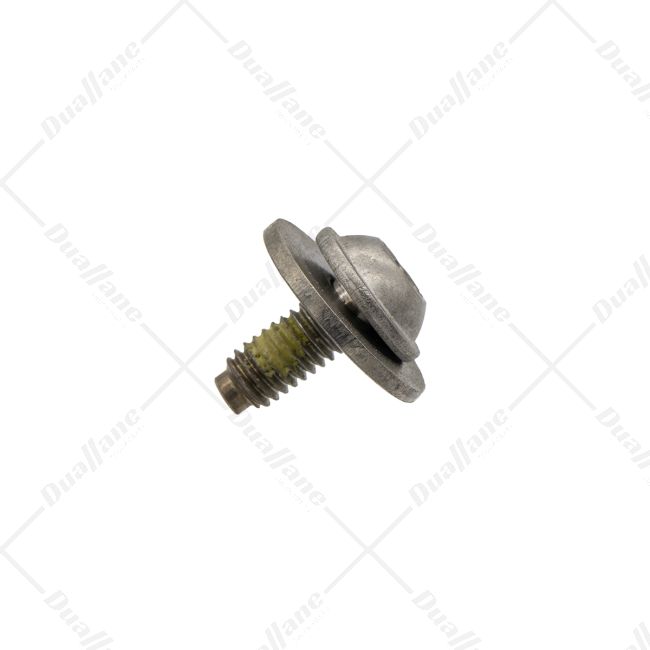

The 23-13602-012 is a screw with a round washer head and a hexagonal recess. Its dimensions are M6 x 1.0, indicating a metric thread size with a diameter of 6 millimeters and a pitch of 1.0 millimeters. The round washer head provides a larger bearing surface, distributing the load evenly and reducing the risk of surface damage during installation. The hexagonal recess allows for easy tightening with a compatible tool, ensuring a secure and reliable fastening solution. This type of screw is commonly used in various applications that require a durable and efficient fastener.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Length: 12 mm
• Thread Size: M6X1.0 mm
• Maximum Diameter: 14.50 mm
• Head Height: 4.60 mm
• Minimum Diameter: 13.80 mm
• Taper Length: 2.50 mm
• Washer Thickness: 1.95 mm
• Washer Diameter: 20 mm
• Material: stainless steel
• Finish: Passivated
• Head Type: T30
