Freightliner Fuel Indicator Sensor, Round, Res, 25 Inch | 66-29967-025
Have a Question for Our Team?
Description

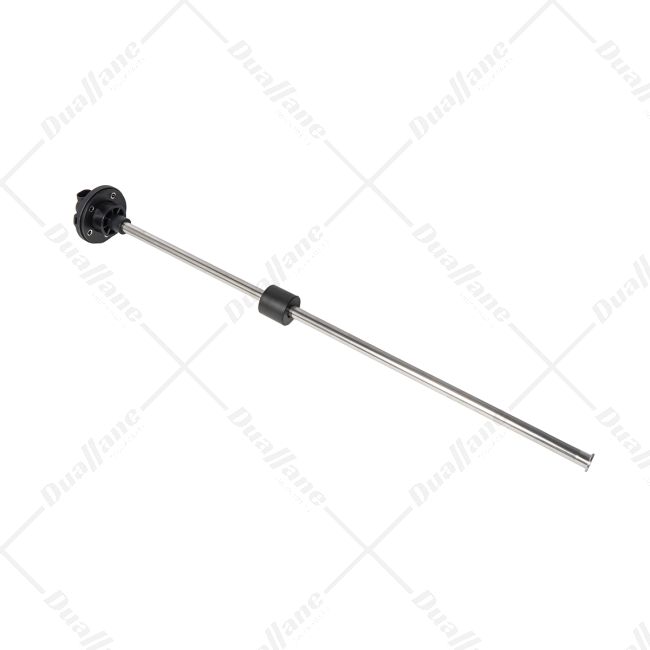

The FL 66-29967-025 serves as a circular fuel indicator sensor that is specifically crafted for automotive fuel tanks. It functions effectively in a wide temperature range of -40 to +85 degrees Celsius and possesses a resistance capacity ranging from 28 to 240.5 ohms. This sensor plays a crucial role in providing accurate fuel level information to the fuel gauge of the vehicle. With a height measuring 23.15 inches, an overall height of 24.50 inches and a diameter of 2.71 inches, it is primarily designed for application in fuel tanks with a length of 25 inches. Additionally, this sensor can handle up to 100 mA maximum current, ensuring its suitability for automotive purposes where precise monitoring of fuel levels is essential.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Working Temperature Range: -40 to +85 Deg. C
- Resistance: 28-240.5 ohm
- Maximum Current: 100 mA
- Height: 23.15 in
- Overall Height: 24.50 in
- Diameter: 2.71 in
- Tank Length: 25 in
| SUPERSESSION | 66-00939-025 |
|---|
| Shipping Weight (lb) | 10.00 |
|---|---|
| Manufacturer | Freightliner |
| Shipping Length (in) | 36.00 |
| Shipping Width (in) | 6.00 |
| Shipping Height (in) | 6.00 |
| Returnable | Yes |
| Core Exchange | No |
