Freightliner Doser Urea Line 2200mm | 04-28841-220
Have a Question for Our Team?
Description

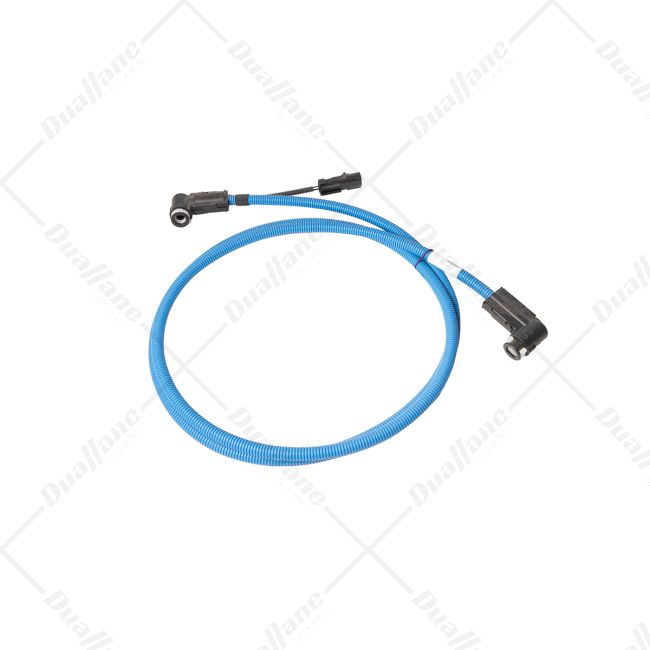

The part with the number 04-28841-220 corresponds to a Urea line that is used in the doser system. This Urea line has a length of 2200 mm. The doser system is an important component in modern diesel engines. It plays a crucial role in reducing harmful emissions through selective catalytic reduction (SCR) and exhaust after treatment. The Urea line's main task is to deliver Diesel Exhaust Fluid (DEF) or Urea to the doser, which then injects it into the exhaust stream. This process helps break down harmful nitrogen oxides (NOx) into harmless nitrogen and water vapor. The length of 2200 mm indicates how this particular Urea line is sized and applied within the engine system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Maximum Flow Rate: 3.17 gal/h
- Voltage: 12 V
- Color: Blue
- Material: Nylon
- End 1 Fitting Type: 90 Degree
- Plug Type: RCT-2CAV, APEX2.8S, FC154200210
- Working Pressure: 130.50 psi
- Wall Thickness: 1 mm
- Tube Length: 2200 mm
- End 1 Fitting Angle: 90 deg
- End 2 Fitting Angle: 90 deg
- Line Outer Diameter: 5 mm
- Line Inner Diameter: 3 mm
- End 1 Fitting Thread Size: 5/16 in
- End 2 Fitting Thread Size: 5/16 in
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 12.00 |
| Shipping Width (in) | 12.00 |
| Shipping Height (in) | 6.00 |
| Returnable | Yes |
| Weight (lb) | 0.10 |
| Core Exchange | No |
