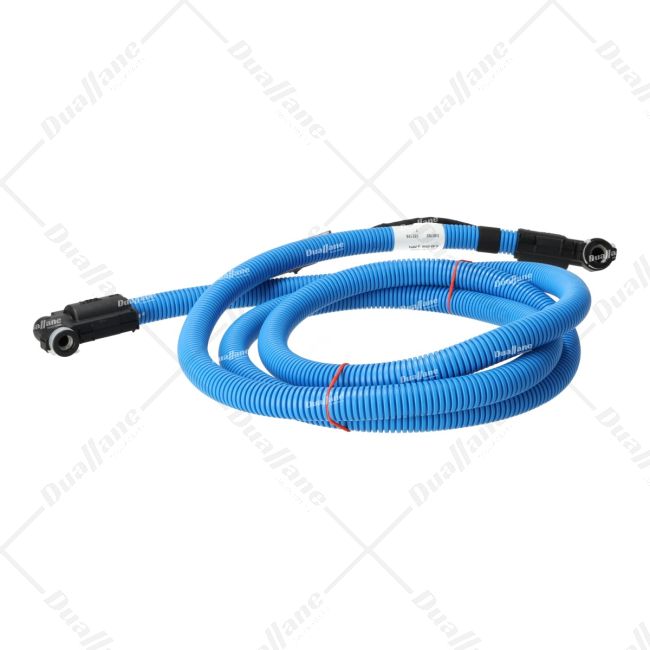

Freightliner Diesel Exhaust Fluid Pressure Line, 2200MM | 04-32032-220

Description

Part number 04-32032-220 is a diesel exhaust fluid (DEF) line that serves as a pressure line and is 2200 mm long. The pressure line is responsible for delivering the DEF under pressure from the reservoir to the dosing system, ensuring the precise injection of DEF into the exhaust stream for effective emission reduction. Regular inspection and maintenance of the DEF line are necessary to avoid any leaks or blockages that could compromise the SCR system's performance. Proper handling and installation are essential to ensure the line's integrity and functionality in the vehicle's emission control system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Operating Temperature: -40 to +120 Deg.C
• Heating Capacity: 45.40 W
• Maximum Flow Rate: 3.17 gal/h
• Voltage: 14.20 V
• Ampere Rating: 12 A
• Color: Blue
• Material: EPDM (Synthetic Rubber)
• End 2 Fitting Type: 90 Degree
• Plug Type: RCT-2CAV, APEX2.8S, FC154200210
• Working Pressure: 130.50 psi
• Wall Thickness: 7.20 mm
• Center To Center Length: 2311 mm
• Tube Length: 2200 mm
• End 1 Fitting Angle: 90 deg
• End 2 Fitting Angle: 90 deg
• Line Outer Diameter: 18.40 mm
• Line Inner Diameter: 4 mm
• End 1 Fitting Thread Size: 5/16 in
• End 2 Fitting Thread Size: 1/4 in
