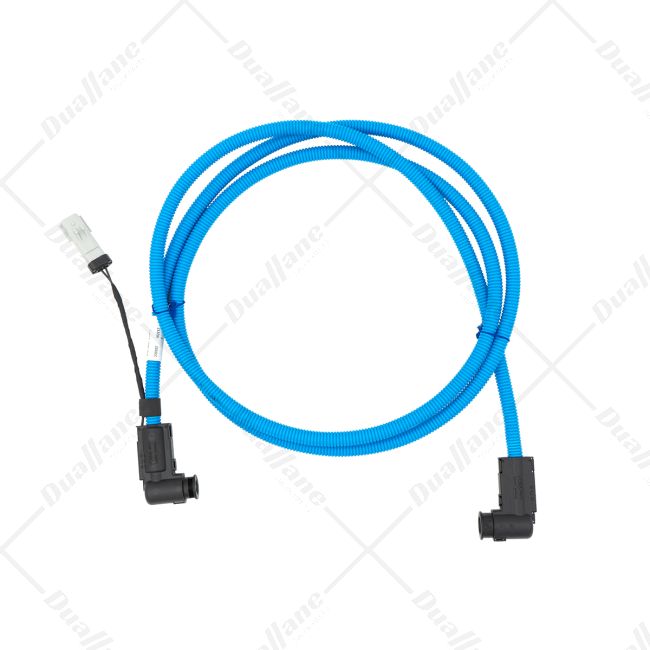

Freightliner DEF Line - Return, 2400mm | 04-31887-240

Description

The 04-31887-240 DEF Line - Return, measuring 2400 mm is engineered to perform within a wide temperature range from -40 to +120 degrees Celsius. This line features a heating capacity of 39.30 W and operates at 14.20 V. Constructed with durable nylon material, it incorporates a 90-degree angle for the second fitting (End 2 Fitting Type: 90 Degree) with a 2W Male Plug Type. It is designed to withstand a working pressure of 165.30 psi. The line dimensions include a Center-To-Center Length of 2522 mm, a Tube Length of 2400 mm and both end fittings at 90 degrees with an inner diameter of 3 mm. Additionally, it has a 3/8-inch thread size at End 1 and a 5/16-inch thread size at End 2.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Temperature: Operating Temperature: -40 to +120 Deg.C
• Heating Capacity: 39.30 W
• Voltage: 14.20 V
• Material: Nylon
• End 2 Fitting Type: 90 Degree
• Plug Type: 2W Male
• Working Pressure: 165.30 psi
• Center To Center Length: 2522 mm
• Tube Length: 2400 mm
• End 1 Fitting Angle: 90 deg
• End 2 Fitting Angle: 90 deg
• Line Inner Diameter: 3 mm
• End 1 Fitting Thread Size: 3/8 in
• End 2 Fitting Thread Size: 5/16 in
