In Stock!

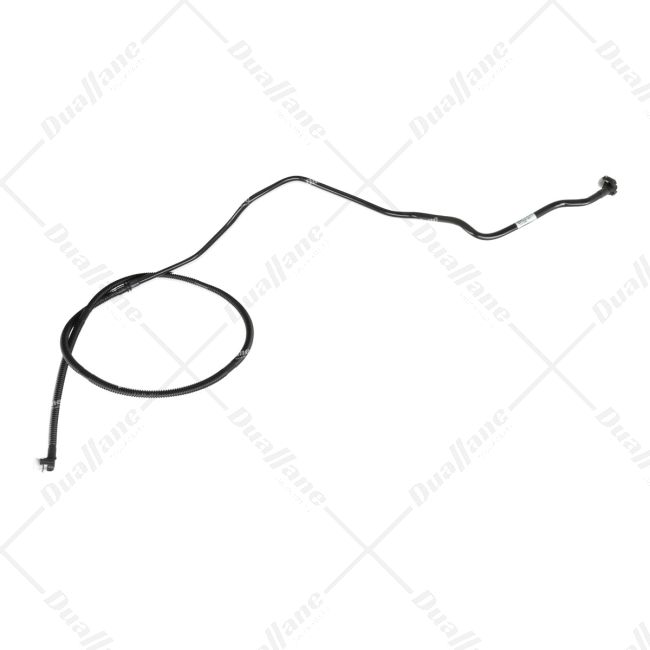

Freightliner DD15 Engine Coolant Supply Line Assembly | A04-32185-462
SKU
FL A04-32185-462
MPN
A04-32185-462
Special Price
$74.66
Regular Price
$93.32
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The A04-32185-462 is a coolant tube assembly designed for DD15 engines. It is responsible for transporting coolant from the radiator or reservoir to the engine's cooling system. The assembly includes fittings, connectors and hose clamps to ensure secure connections. Additionally, mounting brackets are provided for proper installation and support.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Burst Pressure: 4 bar
- Working Pressure Range: 2 bar
- Material: Aluminum
- End 1 Fitting Type: SV246 Elbow Connector NG12 NS 10
- Working Pressure Range: 2 bar
- Outer Diameter: 13 mm
- Inner Diameter: 10 mm
- Wall Thickness: 1.50 mm
- Center To Center Length: 2140 mm
- Working Temperature Range: -40 to +110 Deg.C
| Shipping Weight (lb) | 10.00 |
|---|---|
| Manufacturer | Freightliner |
| Shipping Length (in) | 48.00 |
| Shipping Width (in) | 24.00 |
| Shipping Height (in) | 1.20 |
| Returnable | Yes |
| Core Exchange | No |
