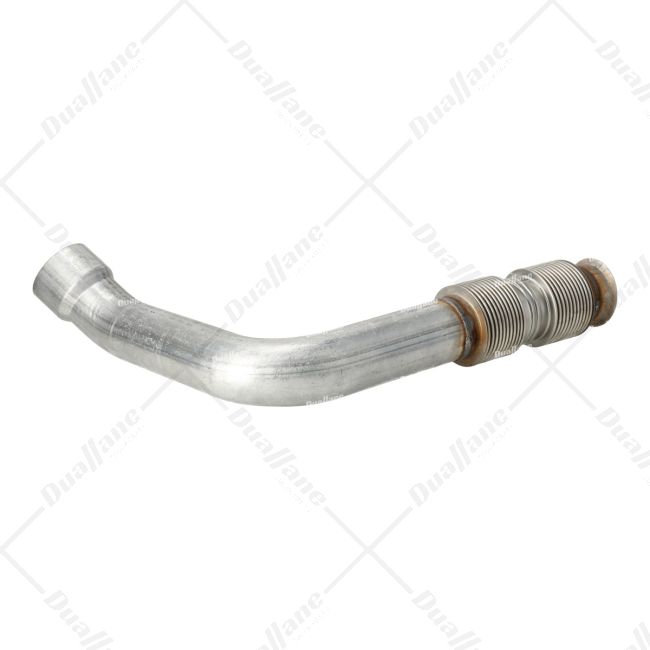

Freightliner DD15 Bellows Assembly | A04-36327-000

Description

The A04-36327-000 is a special part called the bellow assembly, specifically designed for the DD15 engine. It plays a crucial role in the Senior GATS system, which is an important component of the engine's turbocharger system. This bellows assembly serves as a protective barrier, safeguarding the turbine shaft and other internal parts of the turbocharger from potential damage caused by excessive pressure or temperature changes. Its significance lies in maintaining optimal performance and extended lifespan for both the turbocharger and, ultimately, the engine itself. Engineered to meet the precise requirements of the DD15 engine, this assembly is constructed using durable materials that ensure reliable functionality even in high-temperature and high-pressure conditions.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Material: Aluminized Steel / stainless steel
• Wall Thickness: 0.07 in
• End 1 Outer Diameter: 4 in
• End 2 Outer Diameter: 4.69 in
• End 1 Inner Diameter: 3.86 in
• End 2 Inner Diameter: 4.55 in
• Center To Center Length: 32.06 in
• Flange Outer Diameter: 4.65 in
