In Stock!

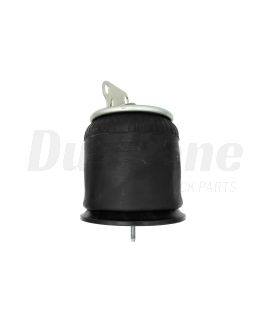

Freightliner Airliner Air Spring | A16-21558-000
SKU
FL A16-21558-000
MPN
A16-21558-000
$170.75
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The A16-21558-000 is an air spring designed for various suspension applications. It features a piston diameter of 9.92 inches (252 mm) and is designed to provide effective load-bearing capabilities. With a mounting hole thread size of M12X1.5 mm and a mounting stud thread size of 1/2-13 UNC in, it's suitable for secure installation. The air spring's construction and specifications ensure reliable performance within a suspension system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Height: 328.10 mm
- Piston Diameter: 270 mm
- Jounce: 111 mm
- Piston Height: 175 mm
- Bellows Diameter: 320 mm
- Top Plate Diameter: 227 mm
- Mounting Hole Thread Size: M12x1.5-6H mm
- Mounting Stud Thread Size: 1/2-13 UNC-2A in
- Plate Material: Steel
- Piston Material: Plastic
- Bellows Material: Rubber
- Maximum Operating Pressure: 100 psi
- Burst Pressure: 200 psi
- Minimum Operating Pressure: 5 psi
- Operating Temperature: -40 to +65 Deg.C
| TORQUE | TR9759 | |
|---|---|---|
| AUTOMANN | 69768, AB1DF239759, 1DF23-9759, 1DF239759, AB1DF23-A999, AB1DF23-9759, AB1DF23A999 | |
| CONTITECH | 68208, 910S16P224, 9 10S-16 P 224, AS9759, 9 10S-16 P 1619, 910S16P1619 | |
| FLEETPRIDE | AS9759 | |
| FREIGHTLINER | A1618335000, A16-18335-000, A1618335001, A16-18335-001, A16-20121-000, A1620121000, A16-20111-001, A1620111001, A16-20111-000, A1620111000, A16-18335-001, A1618335001, A16-18335-000, A1618335000, A16-17574-002, A1617574002, A16-17574-001, A1617574001, A16-17574-000, A1617574000, A16-20121-001, A1620121001, A16-21558-000, A1621558000 | |
| FIRESTONE | 9759, W013589759, W013779759, W01-377-9743, W013779743, W01-358-9759 PLASTIC, W013589759 PLASTIC, W01-358-9759, W013589759, 1T15ZR-6 | |
| VOLVO | 85101151 | |
| GOODYEAR | 1R12-603, 1R12603 | |
| MERITOR | MAF9781 | |
| SAF HOLLAND GOLDLINE | G2299759200, G229A999400 |
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 18.00 |
| Shipping Width (in) | 18.00 |
| Shipping Height (in) | 12.00 |
| Returnable | Yes |
| Weight (lb) | 12.73 |
| Core Exchange | No |
