In Stock!

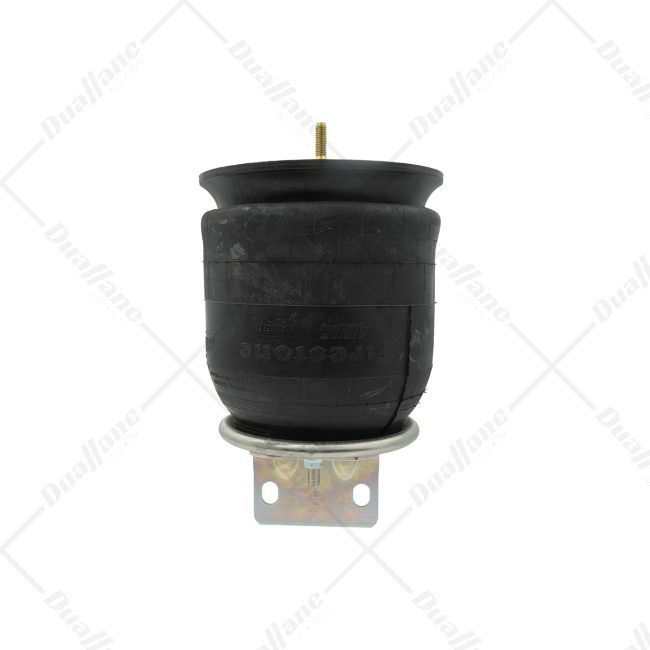

Freightliner Airliner Air Spring | A16-21554-000
SKU
FL A16-21554-000
MPN
A16-21554-000
$189.22
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The A16-21554-000 air spring is a pivotal component within suspension systems, especially in heavy-duty applications like trucks. Key dimensions include a height of 356 mm, piston diameter of 269.70 mm, piston height of 175.3 mm, bellows diameter of 320 mm and top plate diameter of 228.60 mm. The air spring features M12X1.5-6H mm mounting hole threads and 1/2-13 UNC-2A inch mounting stud threads. Its construction incorporates a plastic piston material, ensuring enhanced overall performance.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Height: 356 mm
- Piston Diameter: 269.70 mm
- Piston Height: 175.3 mm
- Bellows Diameter: 320 mm
- Top Plate Diameter: 228.60 mm
- Mounting Hole Thread Size: M12X1.5-6H mm
- Mounting Stud Thread Size: 1/2-13 UNC-2A in
- Piston Material: Plastic
| AUTOMANN | 69768, AB1DF239759 1DF23-9759, 1DF239759, AB1DF23-A999, AB1DF23-9759, AB1DF23A999 | |
|---|---|---|
| CHALMERS SUSPENSION | SC2750 | |
| CONTITECH | 68207, 73244 | |
| FIRESTONE | W01-377-9743, W01-358-9759 PLASTIC, W01-358-9759, W013589759, 1T15ZR-6, W01-377-9759 | |
| FLAGG SUSPENSION PARTS | 8999, 68781, AS-8999P, AS-8999, 8999P | |
| FLEETPRIDE | AS9759 | |
| FREIGHTLINER | 16-19769-000 | |
| FREIGHTLINER TRUCKS | A1618335001, A1618335000, A16-20121-000, A16-20111-001, A16-20111-000, A16-18335-001, A16-18335-000, A16-17574-002, A16-17574-001, A16-17574-000, A16-20121-001 | |
| HOLLAND EQUIPMENT, LTD. | G2299759200, G229A999400 | |
| TRUCK REPLACEMENT PARTS INC. | ASP999P | |
| UNKNOWN | 68208, UNKNOWN PART PLACEHOLDER | |
| VOLVO TRUCK | 85101151 | |
| OTHER | W013779759, W013779743, AS8999P, AS8999, A1620121001, A1620121000, A1620111001, A1620111000, A1617574002, A1617574001, A1617574000 |
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 18.00 |
| Shipping Width (in) | 18.00 |
| Shipping Height (in) | 12.00 |
| Returnable | Yes |
| Weight (lb) | 13.60 |
| Core Exchange | No |
