Description

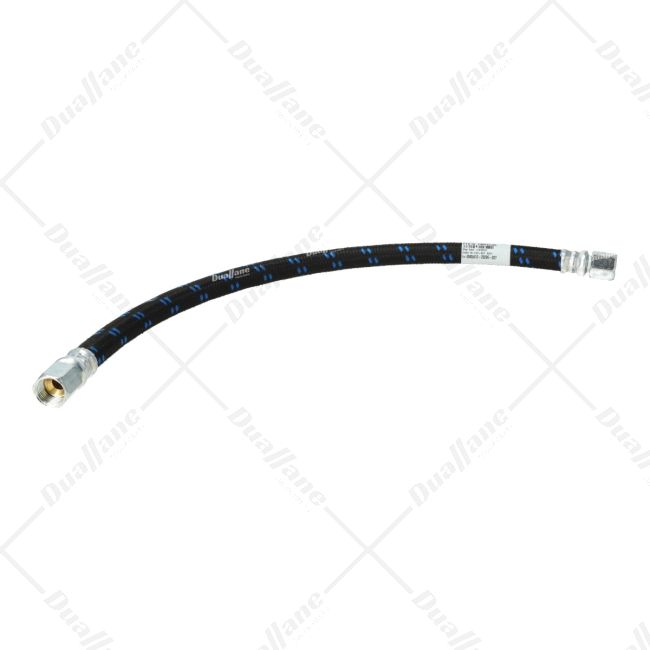

The A12-23236-027 is a 27-inch Freightliner Air Compressor Wire Braided Discharge Line, featuring a 0.50-inch inner diameter and constructed with EPDM (synthetic rubber) material to ensure durability and flexibility. With a working temperature range of -40 to +311 degrees Fahrenheit, it's designed to perform reliably under various conditions. This hose is engineered for efficiency and safety, offering a maximum working pressure of 250 psi and a minimum burst pressure of 1000 psi. Equipped with female swivel straight fittings on both ends, threaded at 7/8-14 inches, it's suitable for use in Freightliner vehicles and other industrial applications where high-quality air compressor lines are essential.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Overall Length: 27 in
- Hose Inner Diameter: 0.50 in
- Hose Length: 24.56 in
- Hose Outer Diameter: 0.83 in
- Hose Wall Thickness: 0.17 in
- End 1 Thread Size: 7/8-14 in
- End 2 Thread Size: 7/8-14 in
- Standard Hose Size: #10
- Color: Black
- End 1 Fitting Type: Female Swivel Straight Fitting
- End 2 Fitting Type: Female Swivel Straight Fitting
- Nut Material: Steel
- Hose Material: EPDM (Synthetic Rubber)
- Nipple Material: Brass
- Working Temperature Range: -40 to +311 Deg. F
- Maximum Working Pressure: 250 psi
- Working Pressure: 250 psi
- Burst Pressure: 1000 psi
- Minimum Burst Pressure: 1000 psi
| AUTOMANN 177.101127, FREIGHTLINER A12-23236-027, FREIGHTLINER A1223236027 |
|---|
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 24.00 |
| Shipping Width (in) | 6.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Weight (lb) | 0.64 |
| Core Exchange | No |
